Flange Bearing, 2-Bolt, Ball, 1-1/4" Bore MPN:SUCFL206-20

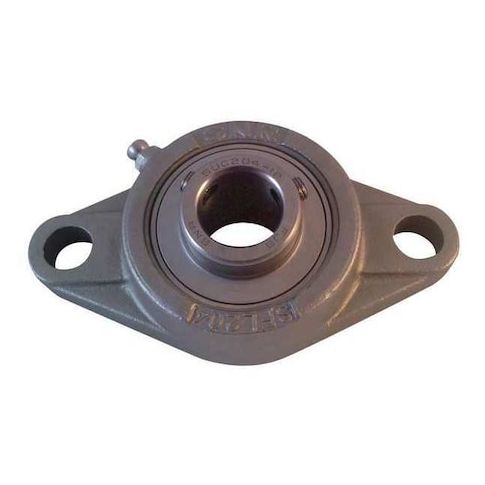

Flange Bearing, 2-Bolt, Ball, 1-1/4" Bore
The NTN 2-Bolt Flange Bearing is a high-performance, stainless steel bearing designed for harsh environments. With a maximum speed of 4,300 RPM and a temperature range of -14°F to 212°F, it can withstand extreme conditions. The bearing features a radial ball design, cylindrical bore, and double-sealed closure for maximum protection. Ideal for use in food processing, pharmaceutical, and other sanitary applications, this bearing provides smooth operation and long-lasting performance. Its compact size and fixed expansion type make it perfect for use in tight spaces and high-speed machinery. Order now and experience the reliability and durability of the NTN 2-Bolt Flange Bearing.
Top product features:
- Double sealed closure provides a high level of dust and moisture protection.
- Stainless steel bearing insert and housing ensure corrosion resistance.
- Radial ball bearing design allows for smooth rotation and high load capacity.
Top product applications:
- Pump and Motor Mounting
- Conveyor and Sprocket Applications
- Food Processing Equipment
2 Bolt Flange Bearing, Back Side to Center Width 0.709 in, Bearing Insert Material Stainless Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 1/4 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Stainless Steel, Housing Type Rhombus, Included Bearing SUC206-20, Lubricant Material FDA/USDA-H1 Solid Grease, Maximum Speed 4,300 RPM, Maximum Temperature 212 Degrees F, Minimum Temperature 14 Degrees F, Mount Hole Center-to-Center Height 4 39/64 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.40
- Package Width: 3.90
- Package Height: 2.30
- Package Weight: 1.87
Product info last updated on January 31, 2026 3:32am UTC
Category: Bearings, V-belts and Power Transmission Equipment
