2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 1 in Dia, Cast Iron, Set Screw Locking MPN:UCFL205-100D1
2 Mount Holes, Rhombus, 2 Bolt Flange Bearing, Radial Ball, 1 in Dia, Cast Iron, Set Screw Locking

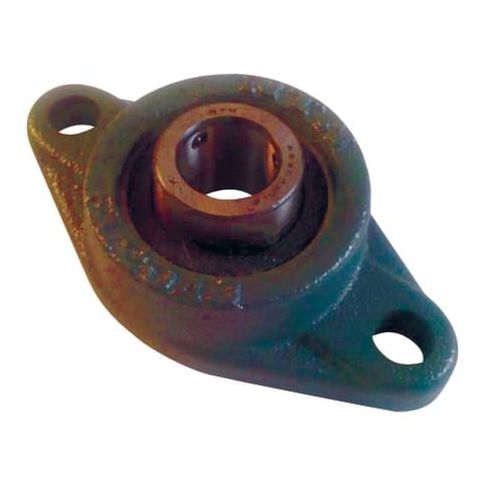

The NTN 2-Bolt Flange Bearing is a reliable and versatile solution for a variety of applications, including machinery, equipment, and industrial systems. Its 1-inch cylindrical bore and radial ball bearing design provide smooth and efficient operation, while the alloy steel bearing insert ensures durability and resistance to wear. The double-sealed closure and NLGI #3 equivalent lubricant provide long-lasting protection against contamination and corrosion. Suitable for temperatures ranging from -40 to 250°F and speeds up to 5,900 RPM, this bearing is ideal for use in harsh environments and demanding applications.
Top product features:
- 2-Bolt flange design provides secure mounting
- Double sealed closure protects against contamination
- Radial ball bearing design allows for smooth rotation
Top product applications:
- Pumps
- Fans
- Conveyors
2 Bolt Flange Bearing, Back Side to Center Width 0.63 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 1 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Rhombus, Included Bearing UC205-100D1, Lubricant Material NLGI #3 Equivalent, Maximum Speed 5,900 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Number of Mount Holes 2, Overall Height 2 11/16 in
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 1.50
- Package Height: 5.30
- Package Weight: 1.38
Product info last updated on March 24, 2026 2:20pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
