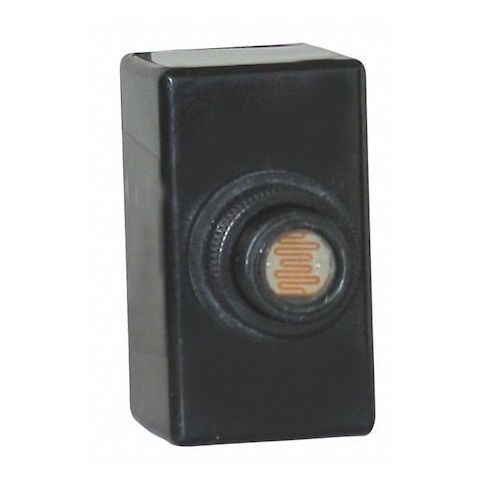

Compact Fluorescent, HID, Inductive, LED Photocontrol, 2, 000 W, Black, 3 sec Max, 2 sec Min
This compact photocontrol is designed for a wide range of applications, including parking garages, streets, and pathways. Its compact size and flush mounting options make it easy to install in tight spaces. The device can handle high-wattage lighting, up to 2000W, and can be set to turn lights on at 1.0-5.0 foot candles and off at 3-15 foot candles. Its durable polycarbonate housing and raintight enclosure ensure reliable operation in harsh environments. Ideal for use in areas with changing light conditions, this photocontrol provides efficient and automatic lighting control.
Top product features:
- Compact Fluorescent, HID, Inductive, LED Photocontrol turns lights on and off automatically based on the amount of light present.
- The photocontrol has a setting for dusk to dawn operation.
- The device has a raintight enclosure to protect internal components from moisture.
Top product applications:
- Outdoor lighting for walkways and driveways
- Automated lighting for parking garages
- Security lighting for perimeter fencing
Photocontrol, Mounting Flush/Box, Voltage 120V AC, Max. Wattage 2,000, Max. Incandescent Amps 16.7 A, Max. Ballast Amps 15 A, 1.0 to 5.0 Foot Candles On, 3 to 15 Foot Candles Off, Color Black, Temp. Range -40 Degrees to 140 Degrees F, Length 2 in, Width 1 1/8 in, Depth 1 45/64 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polycarbonate, Setting Dusk to Dawn, Standards UL 773A, Includes Color Coded Leads
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 1.60
- Package Height: 3.00
- Package Weight: 0.10
