Food Grade Hose Assembly, 3" ID x 15 ft. MPN:6200-48-15-C X E

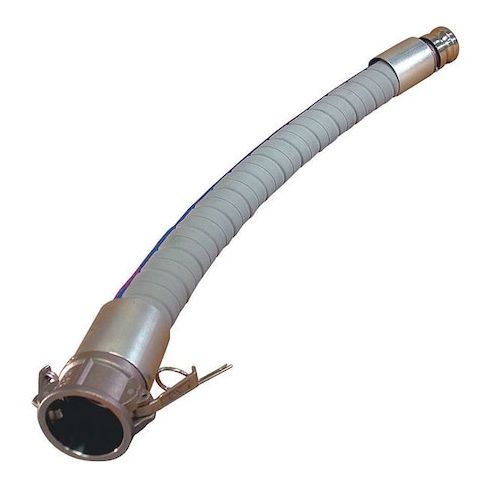

Food Grade Hose Assembly, 3" ID x 15 ft.
This 3-inch ID x 15-foot Food Grade Hose Assembly from Novaflex is designed for safe and reliable transfer of food, beverages, and pharmaceutical products. Made with natural rubber and SBR cover, this hose assembly meets FDA standards and features a polyethylene helix reinforcement for added strength. With a maximum working pressure of 100 psi and a safety factor of 4:1, it's ideal for applications in food processing, brewing, and pharmaceutical manufacturing. Its temperature range of 0-140°F and vacuum rating of 28 in Hg make it suitable for a variety of applications, including high-temperature and high-vacuum processes.
Top product features:
- Natural Rubber hose tube provides chemical resistance and durability
- SBR cover material ensures flexibility and abrasion resistance
- Helix reinforcement with Polyethylene material increases hose strength and stability
Top product applications:
- Brewing and winemaking: The food-grade hose is suitable for transferring liquids in these industries without risk of contamination.
- Pumping and dispensing: The hose's high pressure rating makes it ideal for applications where a strong flow of liquid is required, such as in the dispensing of liquids in restaurants and cafes.
- Filtration systems: The hose's ability to withstand high pressure and temperature fluctuations makes it a good choice for use in filtration systems, where liquids are being pumped through filters to remove impurities.
Food Grade Hose Assembly, Hose Inside Dia. 3 in, Hose Outside Dia. 3 47/64 in, Hose Length 15 ft, Hose Tube Material Natural Rubber, Hose Cover Material SBR, Hose Reinforcement Type Helix, Hose Reinforcement Material Polyethylene, Hose Color Gray, Vacuum Rating 28.00 in Hg, Burst Pressure 400 psi, Max. Working Pressure @ 70 F 100 psi, Safety Factor 4:1, Temp. Range 0 Degrees to 140 Degrees F, Standards FDA, Bend Radius 0 in, Hose Configuration Coupled Assembly, Hose Fitting A Size 3 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 36.00
- Package Width: 36.00
- Package Height: 6.00
- Package Weight: 43.00
