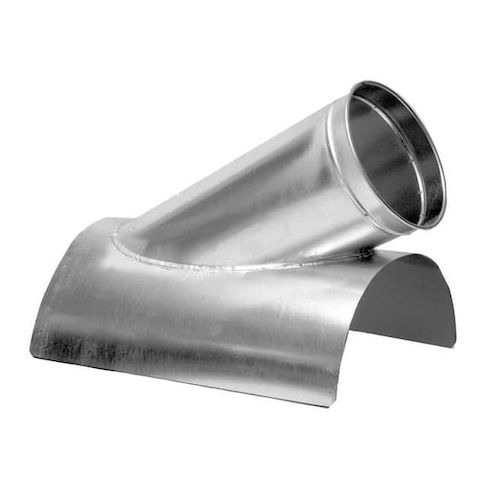

Round 16"dia 2"L 30 Degrees GSteel In-Cut Branch, 16 in x 16 in Duct Dia, Galvanized Steel, 2" L MPN:8040300105
Round 16"dia 2"L 30 Degrees GSteel In-Cut Branch, 16 in x 16 in Duct Dia, Galvanized Steel, 2" L
This 16 inch galvanized steel in-cut branch is designed for use in commercial and industrial ductwork systems, providing a reliable and durable connection point for air handling and ventilation applications. Its 30 degree angle and 2 inch length make it ideal for creating complex duct configurations and reducing pressure drops. The branch's silver finish and clamp-together connection ensure easy installation and maintenance. Suitable for use in a variety of industries, including manufacturing, healthcare, and education, this in-cut branch is a versatile solution for any ventilation system. It withstands temperatures up to 390 degrees Fahrenheit and pressures up to 42 inches of water column.
Top product features:
- Round shape with a 30-degree angle provides a unique configuration for airflow management.
- Galvanized steel construction offers durability and resistance to corrosion.
- 20-gauge material thickness provides a strong and lightweight structure.
Top product applications:
- Air Handling and HVAC Systems
- Industrial Ventilation Systems
- Commercial Ductwork Installation
16 In.dia 2 In.L 30 Degrees GSteel In-Cut Branch, For Nominal Duct Diameter 16 in, Inlet Diameter 16 in, Overall Length 2 in, Product Type In Cut, Weight 17.2 lb, Material Steel, Maximum Pressure Rating 42 in wc, Material Thickness 20 ga, Maximum Temperature Rating 390 Degrees F, Minimum Pressure Rating 2 in wc, Shape Wye, Inside Diameter 16 in, Outlet Diameter 16 in, Angle 30 Degrees , Overall Height 38 in, Maximum Airflow Not Applicable, Color Silver, Connection Type Clamp Together
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
Product info last updated on February 12, 2026 1:52pm UTC
Category: Ventilation
