Round Angle Flange Adapter, 10 in Duct Dia, Galvanized Steel, 22 ga GA, 1-1/4" L, 1-1/4" H MPN:8010000147

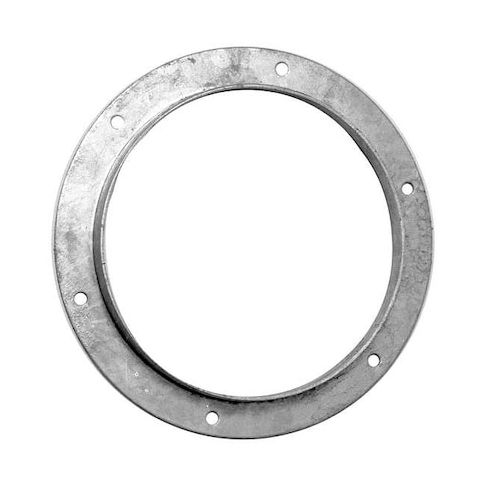

Round Angle Flange Adapter, 10 in Duct Dia, Galvanized Steel, 22 ga GA, 1-1/4" L, 1-1/4" H
This Round Angle Flange Adapter is designed for use in ductwork systems, allowing for a secure and reliable connection between different components. Its galvanized steel construction provides durability and resistance to corrosion, while the 22-gauge material thickness ensures a strong and rigid structure. With a maximum pressure rating of 42 inches of water column, this adapter can handle demanding applications. Suitable for use in various industries, including HVAC and industrial ventilation, it is an essential component for maintaining smooth airflow and system efficiency. Its compact design and easy installation make it a convenient solution for ductwork engineers and technicians.
Top product features:
- Round Angle Flange Adapter connects to a 10 in duct diameter
- Galvanized Steel construction provides corrosion resistance
- Inside Diameter of 1/2 in allows for reduced airflow resistance
Top product applications:
- Ductwork connections in commercial kitchens
- HVAC systems in industrial facilities
- Ventilation systems in large office buildings
Angle Flange Adapter, For Nominal Duct Diameter 10 in, Inlet Diameter 10 1/8 in, Material Steel, Product Type Angle Flange Adapter, Material Thickness 22 ga, Overall Length 1 1/4 in, Maximum Pressure Rating 42 in wc, Weight 3 lb, For Duct Height 10 in, Flange Inner Diameter 10 1/8 in, For Duct Width 10 in, Flange Outer Diameter 12 5/8 in, Inside Diameter 1/2 in, Number of Holes on Flange 6, Overall Width 10 in, Bolt Circle Diameter 11 3/4 in, Minimum Pressure Rating 2 in wc, Shape Straight
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.00
- Package Width: 13.00
- Package Height: 1.40
- Package Weight: 3.25
Product info last updated on February 14, 2026 5:07am UTC
Category: Ventilation
