Round Blast Gate, Galvanized Steel, 20 GA, 23.30" W, 12 in L, 41" H MPN:8010002403
Round Blast Gate, Galvanized Steel, 20 GA, 23.30" W, 12 in L, 41" H

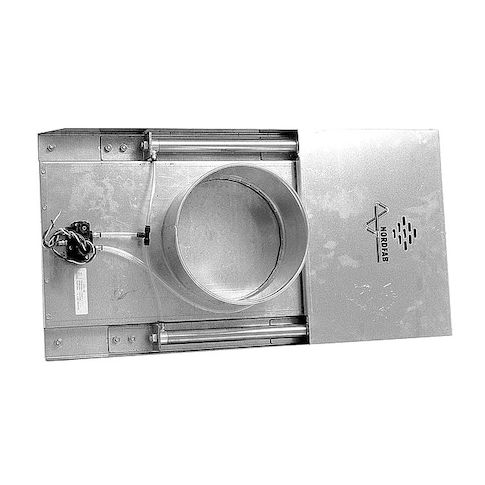

This Round Blast Gate from Nordfab is a reliable and efficient solution for controlling airflow in industrial settings. Designed for use in nominal duct diameters of 14 inches, it features a sturdy galvanized steel body and blade, with a maximum pressure rating of 42 inches WC. The gate's compact design, measuring 23.30 inches wide and 41 inches high, makes it ideal for use in tight spaces. Its pneumatic operation allows for smooth and precise control, making it suitable for a range of applications, including dust collection, ventilation, and pneumatic conveying systems. It's a cost-effective and durable solution for maintaining optimal airflow.
Top product features:
- Galvanized steel blade for corrosion resistance
- Maximum temperature rating of 250 Degrees F for high-temperature applications
- Pneumatic operation with a minimum operating pressure of 75 psi for adjustable airflow control
Top product applications:
- Dust collection systems for woodworking shops
- Fume extraction systems in metal fabrication facilities
- Pneumatic conveying systems in the pharmaceutical industry
Blast Gate, For Nominal Duct Diameter 14 in, Body Material Steel, Overall Length 12 in, Product Type Pneumatic Blast Gate, Weight 50 lb, Maximum Pressure Rating 42 in wc, Blade Material Galvanized Steel, Maximum Temperature Rating 250 Degrees F, Nameplate Voltage 120V AC, Number of Air Cylinders 2, Body Material Thickness 20 ga, Minimum Operating Pressure 75 psi, Minimum Pressure Rating 75 psi, Overall Depth 41 in, Overall Width 23 1/4 in, Shape Rectangular, Inside Diameter 14 in, Color Silver
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
Product info last updated on February 9, 2026 10:54pm UTC
Category: Ventilation
