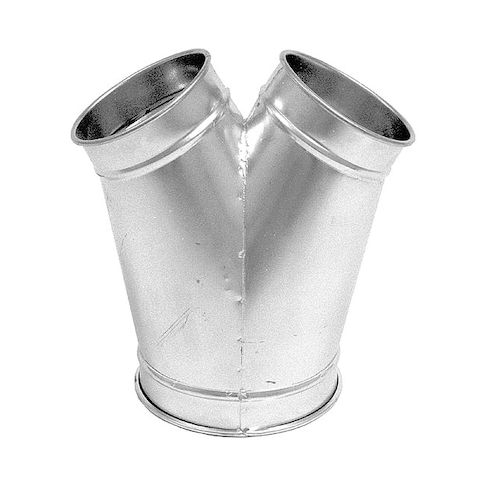

Round 12"dia 16"L 60 Degrees GSteel Wye Branch, 12 in Duct Dia, Galvanized Steel, 22 ga GA, 16" L MPN:8040200271
Round 12"dia 16"L 60 Degrees GSteel Wye Branch, 12 in Duct Dia, Galvanized Steel, 22 ga GA, 16" L
This 60-degree galvanized steel wye branch is a versatile duct component suitable for various applications, including commercial and industrial HVAC systems. Its 12-inch diameter and 16-inch length provide a reliable connection point for ductwork, allowing for efficient airflow and pressure management. The product's silver finish and 22-gauge material ensure durability and resistance to corrosion. With a maximum pressure rating of 42 inches of water column and a temperature rating of 390 degrees Fahrenheit, this wye branch is ideal for use in high-velocity systems, making it a reliable choice for applications where airflow and pressure control are critical.
Top product features:
- Round shape allows for smooth airflow and easy installation.
- 60-degree angle design enables efficient duct branching and minimizes pressure drop.
- Galvanized steel construction provides durability and resistance to corrosion.
Top product applications:
- Air Handling Unit (AHU) Installations
- Ductwork Branching for HVAC Systems
- Industrial Ventilation Systems
12 In.dia 16 In.L 60 Degrees GSteel Wye Branch, For Nominal Duct Diameter 12 in, Inlet Diameter 12 in, Overall Length 16 in, Product Type Wye Branch, Weight 10.25 lb, Material Steel, Maximum Pressure Rating 42 in wc, Material Thickness 22 ga, Maximum Temperature Rating 390 Degrees F, Minimum Pressure Rating 2 in wc, Shape Wye, Inside Diameter 12 in, Outlet Diameter 12 in, Overall Width 25 in, Angle 60 Degrees , Overall Height 16 in, Maximum Airflow Not Applicable, Color Silver
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
Product info last updated on February 10, 2026 9:19am UTC
Category: Ventilation
