Angle Flange Adapter, Steel, 20 ga Thick MPN:8040401833
Angle Flange Adapter, Steel, 20 ga Thick

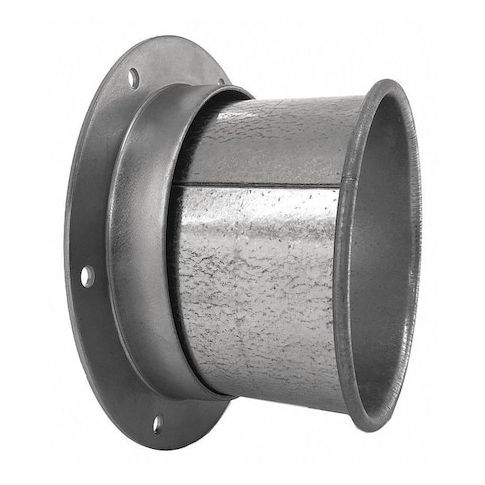

The Nordfab Angle Flange Adapter is a versatile steel component designed for seamless integration with nominal duct diameters of 17 inches. Its 20-gauge thickness ensures durability and stability, while its compact 5-inch length allows for easy installation in tight spaces. With a maximum pressure rating of 42 inches of water column, this adapter can handle demanding airflow applications, including those requiring up to 11,030 cubic feet per minute (cfm). Suitable for use in a variety of settings, including commercial and industrial HVAC systems, this adapter provides a reliable connection point for ductwork, ensuring efficient and safe airflow.
Top product features:
- 20 ga Thickness provides structural integrity to the product
- Maximum Pressure Rating of 42 in wc allows for high airflow applications
- Inside Diameter of 17 in enables smooth airflow and reduced pressure drop
Top product applications:
- Ductwork expansion or contraction due to temperature changes
- Ductwork connections in tight spaces
- Ductwork connections where a standard flange adapter is not feasible
Angle Flange Adapter, For Nominal Duct Diameter 17 in, Inlet Diameter 17 in, Material Steel, Product Type Angle Flange Adapter, Material Thickness 20 ga, Overall Length 5 in, Maximum Pressure Rating 42 in wc, Weight 12.9 lb, For Duct Height 17 in, Flange Inner Diameter 17 1/8 in, For Duct Width 17 in, Flange Outer Diameter 20 1/8 in, Maximum Airflow 11,030 cfm, Inside Diameter 17 in, Number of Holes on Flange 8, Overall Width 20 1/8 in, Bolt Circle Diameter 19 in, Minimum Pressure Rating 2 in wc
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 20.13
- Package Height: 20.13
- Package Weight: 12.90
Product info last updated on January 22, 2026 1:22pm UTC
Category: Ventilation
