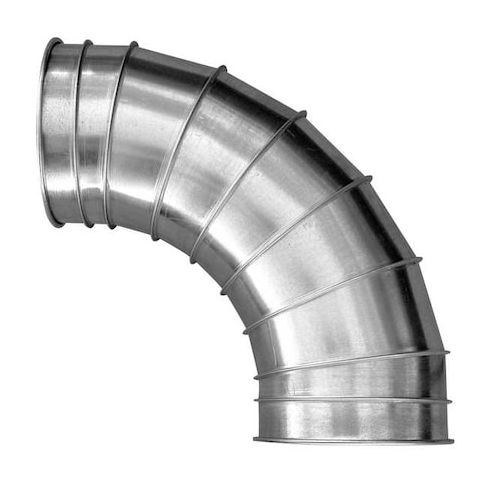

Elbow, 90 Degree, Steel, Round, 20 ga Thick MPN:8040400060
Elbow, 90 Degree, Steel, Round, 20 ga Thick
This 90-degree steel elbow is designed for use in ductwork applications, providing a seamless connection between two sections of round duct. Its 20-gauge thickness ensures durability and resistance to wear and tear. With a maximum airflow capacity of 18,480 cfm, this elbow is suitable for commercial and industrial HVAC systems. Its compact size, measuring 46 1/4 inches in overall length and 7 3/8 inches in height, makes it ideal for tight spaces. Suitable for duct diameters up to 22 inches, this elbow is a reliable solution for maintaining smooth airflow and efficient system performance.
Top product features:
- 90 Degree Elbow provides a right angle connection for ducts
- 20 ga Steel construction offers durability and resistance to wear
- Maximum Airflow of 18,480 cfm allows for high volume air transfer
Top product applications:
- Air Handling Systems
- Ductwork for Industrial Facilities
- Commercial HVAC Systems
90 Degree Elbow, For Nominal Duct Diameter 22 in, Inlet Diameter 22 in, Material Steel, Overall Length 46 1/4 in, Product Type Elbow, Material Thickness 20 ga, Weight 43.06 lb, Maximum Pressure Rating 42 in wc, For Duct Height 22 in, Shape Elbow, End Type Rolled Edge, For Duct Width 22 in, Gas Appliance Category Not Applicable, Maximum Airflow 18,480 cfm, Inside Diameter 22 in, Minimum Pressure Rating 2 in wc, Color Silver, Outlet Diameter 22 in, Overall Height 7 3/8 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 46.25
- Package Width: 46.25
- Package Height: 22.50
- Package Weight: 43.06
Product info last updated on February 9, 2026 9:41pm UTC
Category: Ventilation
