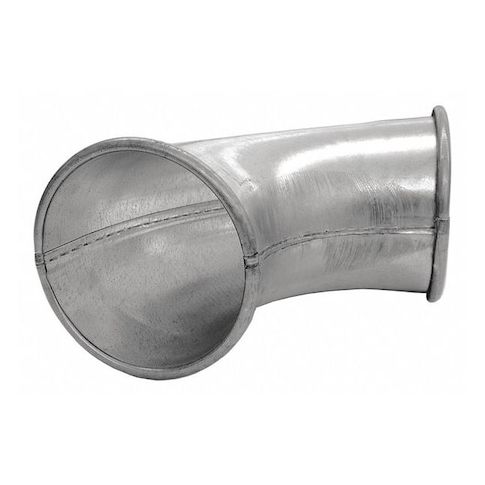

Round 30 Degree Elbow, 5 in Duct Dia, Galvanized Steel, 24 ga GA, 6 1/4 in W, 6-1/4" L, 5 in H MPN:8010000955
Round 30 Degree Elbow, 5 in Duct Dia, Galvanized Steel, 24 ga GA, 6 1/4 in W, 6-1/4" L, 5 in H
This 30-degree galvanized steel elbow is designed for use in ductwork systems, providing a smooth transition between two sections of 5-inch diameter duct. Its compact design and sturdy construction make it ideal for use in commercial and industrial settings, where space is a premium. The elbow's high-pressure rating and durable material ensure reliable performance in demanding applications, such as HVAC systems and air handling units. Its versatility and ease of installation make it a popular choice among contractors and facility managers, who appreciate its ability to simplify ductwork configurations and improve airflow efficiency.
Top product features:
- Round 30 Degree Elbow for nominal duct diameter 5 in
- Clamp-together connection type
- Centerline radius of 1 in for smooth airflow and reduced turbulence
Top product applications:
- Round 30 Degree Elbow in a commercial kitchen ventilation system to connect a range hood to a ductwork.
- In a residential HVAC system, the 30 Degree Elbow is used to connect a supply duct to a return duct.
- The 30 Degree Elbow is used in a industrial factory ventilation system to connect a large air handling unit to a ductwork that supplies air to the factory floor.
30 Degree Elbow, For Nominal Duct Diameter 5 in, Material Steel, Overall Length 6 1/4 in, Product Type Elbow, Material Thickness 24 ga, Weight 1.2 lb, Maximum Pressure Rating 42 in wc, For Duct Height 5 in, Shape Elbow, End Type Rolled Edge, For Duct Width 5 in, Maximum Airflow Not Applicable, Inside Diameter 5 in, Minimum Pressure Rating 2 in wc, Color Silver, Outlet Diameter 5 in, Overall Height 5 in, Centerline Radius 1 in, Angle 30 Degrees , Connection Type Clamp Together
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.30
- Package Width: 5.30
- Package Height: 6.00
- Package Weight: 0.60
