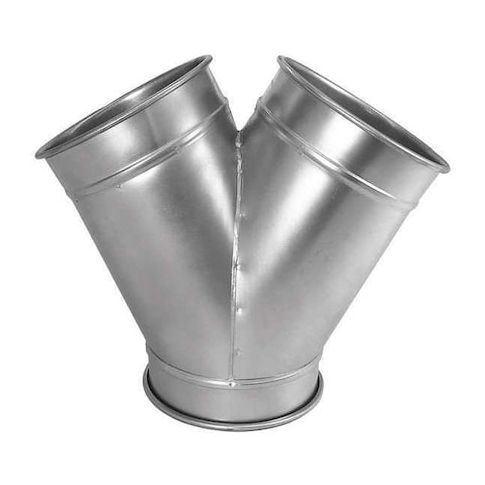

Round 12"dia 19 1/2"L 60 Degrees SS Wye Branch, 12 in Duct Dia, 304 Stainless Steel, 22 ga GA MPN:8040200826
Round 12"dia 19 1/2"L 60 Degrees SS Wye Branch, 12 in Duct Dia, 304 Stainless Steel, 22 ga GA
This 60-degree stainless steel wye branch is designed for use in high-temperature ductwork applications, featuring a 304 stainless steel construction and 22-gauge material thickness for durability and resistance to corrosion. Its 12-inch diameter and 19.5-inch length make it suitable for a variety of commercial and industrial settings, including HVAC systems, industrial ventilation, and air handling systems. The wye branch's 60-degree angle allows for efficient airflow and reduced pressure drop, making it an ideal component for applications requiring high airflow rates and minimal pressure loss. Its silver finish provides a sleek and durable appearance.
Top product features:
- Round design allows for smooth airflow and efficient duct connections
- 60-degree angle enables flexible duct routing and installation options
- 304 Stainless Steel construction provides corrosion resistance and durability
Top product applications:
- HVAC Ductwork System
- Air Handling Unit
- Ductwork Configuration
12 In.dia 19 1/2 In.L 60 Degrees SS Wye Branch, For Nominal Duct Diameter 12 in, Inlet Diameter 12 in, Overall Length 19 1/2 in, Product Type Wye Branch, Weight 10.25 lb, Material Stainless Steel, Maximum Pressure Rating 42 in wc, Material Thickness 22 ga, Maximum Temperature Rating 1,100 Degrees F, Minimum Pressure Rating 2 in wc, Shape Wye, Inside Diameter 12 in, Outlet Diameter 12 in, Overall Width 25 in, Angle 60 Degrees , Overall Height 16 in, Maximum Airflow Not Applicable, Color Silver
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.50
- Package Width: 30.00
- Package Height: 12.00
- Package Weight: 10.25
Product info last updated on March 14, 2026 7:51pm UTC
Category: Ventilation
