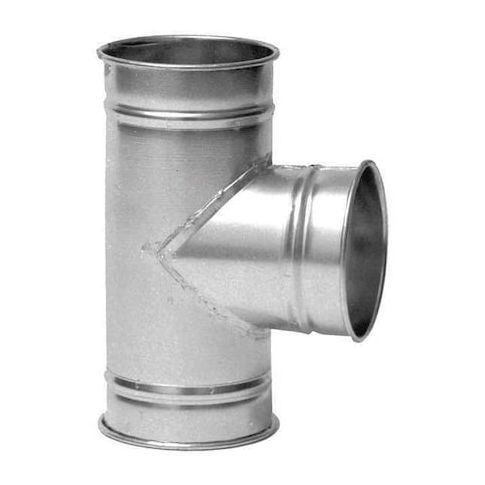

Round 9"dia 17"L 90 Degrees GSteel Tee Branch, 9 in Duct Dia, Galvanized Steel, 22 ga GA, 13 in W MPN:8040304739
Round 9"dia 17"L 90 Degrees GSteel Tee Branch, 9 in Duct Dia, Galvanized Steel, 22 ga GA, 13 in W
This 9-inch diameter, 17-inch long galvanized steel tee branch is designed for use in commercial and industrial air duct systems. Its 22-gauge thickness provides durability and resistance to corrosion, while its 90-degree angle allows for efficient airflow and easy installation. Suitable for applications such as HVAC, ventilation, and air handling systems, this tee branch ensures reliable air distribution and pressure management. With a maximum pressure rating of 42 inches of water column and a temperature rating of 390 degrees Fahrenheit, it can withstand demanding environments and heavy use. Ideal for new construction or retrofit projects, this tee branch offers a reliable solution for air system installations.
Top product features:
- Galvanized steel construction provides resistance to corrosion
- 22 ga material thickness allows for a balance between strength and flexibility
- 90-degree design enables a change in direction of airflow without restriction
Top product applications:
- Air Duct Systems
- HVAC Installation
- Industrial Ventilation Systems
9 In.dia 17 In.L 90 Degrees GSteel Tee Branch, For Nominal Duct Diameter 9 in, Inlet Diameter 9 in, Overall Length 17 in, Product Type Tee Branch, Weight 5.5 lb, Material Steel, Maximum Pressure Rating 42 in wc, Material Thickness 22 ga, Maximum Temperature Rating 390 Degrees F, Minimum Pressure Rating 2 in wc, Shape Tee, Inside Diameter 9 in, Outlet Diameter 9 in, Overall Width 13 in, Angle 90 Degrees , Overall Height 17 in, Maximum Airflow Not Applicable, Color Silver
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.00
- Package Width: 13.00
- Package Height: 9.00
- Package Weight: 5.50
Product info last updated on February 10, 2026 1:17am UTC
Category: Ventilation
