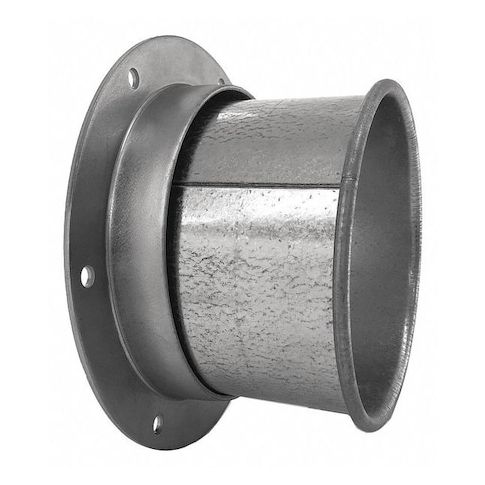

Round Angle Flange Adapter, 16 in Duct Dia, 304 Stainless Steel, 20 ga GA, 19 1/4 in W, 5" L MPN:8040401854
Round Angle Flange Adapter, 16 in Duct Dia, 304 Stainless Steel, 20 ga GA, 19 1/4 in W, 5" L
The Round Angle Flange Adapter is a versatile and durable solution for connecting ductwork in commercial and industrial applications. Made from high-quality 304 stainless steel, this adapter features a 20-gauge thickness for added strength and resistance to corrosion. Its compact design allows for easy installation in tight spaces, while the 8-hole flange ensures secure connections. With a maximum pressure rating of 42 inches of water column, this adapter is suitable for a wide range of duct sizes and configurations. Ideal for use in HVAC, exhaust, and ventilation systems, the Round Angle Flange Adapter is a reliable and long-lasting choice for professionals.
Top product features:
- Round Angle Flange Adapter connects ducts of varying heights and widths
- Adapter features 8 holes on the flange for secure bolting
- Adapter has a maximum pressure rating of 42 in wc, allowing for high airflow
Top product applications:
- Air Handling Unit (AHU) Installation
- Ductwork Expansion or Contraction
- Ductwork Connection for Ventilation Systems
Angle Flange Adapter, For Nominal Duct Diameter 16 in, Inlet Diameter 16 in, Material Stainless Steel, Product Type Angle Flange Adapter, Material Thickness 20 ga, Overall Length 5 in, Maximum Pressure Rating 42 in wc, Weight 11.05 lb, For Duct Height 16 in, Flange Inner Diameter 16 1/8 in, For Duct Width 16 in, Flange Outer Diameter 19 1/8 in, Inside Diameter 1/2 in, Number of Holes on Flange 8, Overall Width 16 in, Bolt Circle Diameter 18 in, Minimum Pressure Rating 2 in wc, Shape Straight
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.00
- Package Width: 19.00
- Package Height: 5.00
- Package Weight: 10.30
Product info last updated on February 10, 2026 12:59am UTC
Category: Ventilation
