Angle Flange Adapter, Stainless Steel MPN:8040401856
Angle Flange Adapter, Stainless Steel

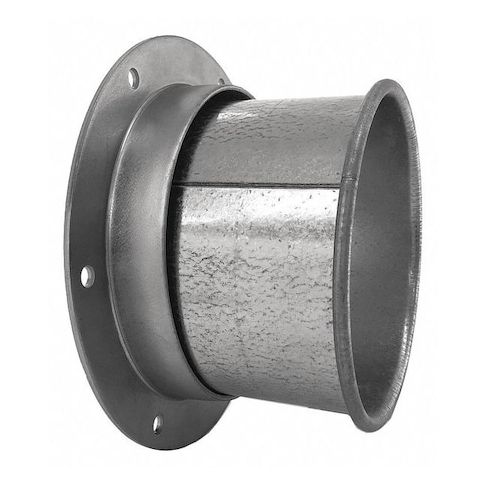

The Nordfab Angle Flange Adapter is a versatile and durable solution for connecting and expanding ductwork systems. Made from 20 ga stainless steel, this adapter features an 18 in nominal duct diameter and a maximum pressure rating of 42 in wc, allowing for efficient airflow and reliable performance. Suitable for a wide range of applications, including commercial and industrial HVAC systems, this adapter simplifies ductwork installation and modification, reducing labor costs and increasing system flexibility. Its compact design and robust construction ensure a long-lasting and maintenance-free solution for demanding ductwork needs.
Top product features:
- Angle Flange Adapter allows for secure connection of ductwork to the surrounding structure
- The adapter has a stainless steel construction for durability and resistance to corrosion
- The adapter is designed to accommodate a maximum airflow of 12,370 cfm
Top product applications:
- Ductwork connection for commercial HVAC systems
- Industrial exhaust ventilation system for heavy-duty applications
- Air handling unit installation in large commercial buildings
Angle Flange Adapter, For Nominal Duct Diameter 18 in, Inlet Diameter 18 in, Material Stainless Steel, Product Type Angle Flange Adapter, Material Thickness 20 ga, Overall Length 5 in, Maximum Pressure Rating 42 in wc, Weight 15.2 lb, For Duct Height 18 in, Flange Inner Diameter 18 1/8 in, For Duct Width 18 in, Flange Outer Diameter 21 1/8 in, Maximum Airflow 12,370 cfm, Inside Diameter 18 in, Number of Holes on Flange 8, Overall Width 21 1/8 in, Bolt Circle Diameter 20 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 21.13
- Package Height: 21.13
- Package Weight: 15.20
Product info last updated on March 31, 2026 10:39am UTC
Category: Ventilation
