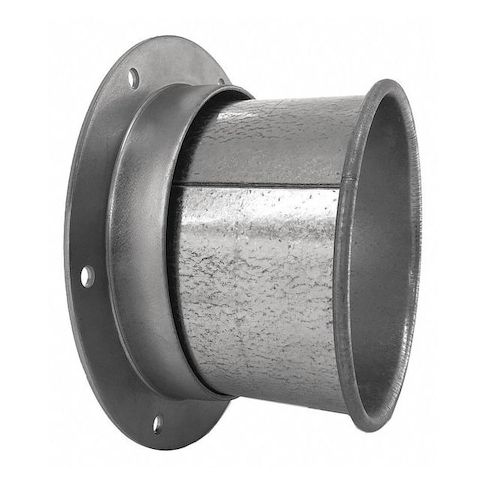

Angle Flange Adapter, Steel, 20 ga Thick MPN:8040401834
Angle Flange Adapter, Steel, 20 ga Thick
This Angle Flange Adapter is a versatile steel component designed for seamless integration with 18-inch nominal duct systems. Its 20-gauge thickness ensures durability and stability, while its 5-inch overall length provides a secure fit. With a maximum pressure rating of 42 inches of water column, this adapter can handle demanding airflow requirements, supporting up to 12,370 cfm. Ideal for duct systems in commercial and industrial settings, this adapter facilitates efficient airflow and minimizes pressure drops, making it a reliable choice for HVAC professionals and contractors. Its compact design also makes it easy to install and maintain.
Top product features:
- 20 ga thick steel construction provides durability and strength
- Adapts to nominal duct diameter of 18 in for secure connections
- Maximum pressure rating of 42 in wc allows for high airflow capacity
Top product applications:
- Heating, Ventilation, and Air Conditioning (HVAC) systems
- Commercial kitchen ventilation systems
- Industrial air handling systems
Angle Flange Adapter, For Nominal Duct Diameter 18 in, Inlet Diameter 18 in, Material Steel, Product Type Angle Flange Adapter, Material Thickness 20 ga, Overall Length 5 in, Maximum Pressure Rating 42 in wc, Weight 15.2 lb, For Duct Height 18 in, Flange Inner Diameter 18 1/8 in, For Duct Width 18 in, Flange Outer Diameter 21 1/8 in, Maximum Airflow 12,370 cfm, Inside Diameter 18 in, Number of Holes on Flange 8, Overall Width 21 1/8 in, Bolt Circle Diameter 20 in, Minimum Pressure Rating 2 in wc
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.00
- Package Width: 22.00
- Package Height: 5.00
- Package Weight: 11.80
Product info last updated on February 10, 2026 9:30am UTC
Category: Ventilation
