Speed Reducer, Right Angle, 56C, 25:1 MPN:SK1SI75Y-56C-25:1
Speed Reducer, Right Angle, 56C, 25:1

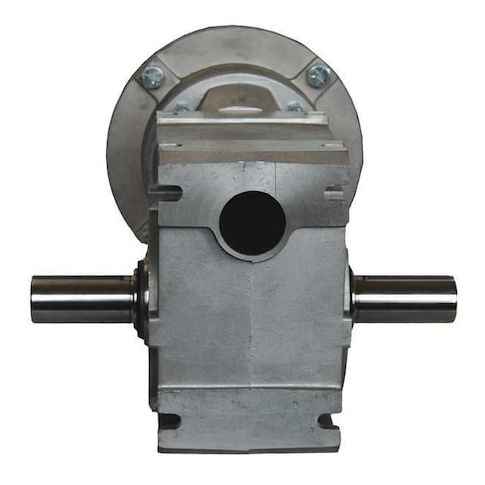

The Nord Speed Reducer is a versatile, right-angle gearbox designed for applications requiring high torque and low speed output. Ideal for use in manufacturing, material handling, and conveyor systems, this unit delivers a 25:1 gear ratio, reducing input speed from 2800 RPM to a steady 112 RPM, while increasing output torque to 2036 in-lb. With a maximum input horsepower of 2.75 hp and a robust aluminum housing, this speed reducer can handle demanding overhung loads of up to 2250 lb. Its compact design and flexible mounting orientation make it suitable for a wide range of applications, including robotics, packaging, and assembly lines.
Top product features:
- Right Angle Input Connection allows for compact installation in tight spaces.
- Worm Gear Type provides a high reduction ratio and smooth operation.
- Hollow Output Shaft allows for easy connection to other components.
Top product applications:
- Conveyor systems for heavy-duty materials handling
- High-torque applications such as packaging machinery
- Machine tool spindles for precision machining operations
Speed Reducer, Input Connection Type Right Angle, Gear Type Worm, Output Shaft Type Hollow, Maximum Output Speed 70 RPM, Motor Frame Designation 56C, Worm Center Distance 2.95 in, Base to Center 3.39 in, Gear Ratio 25:1, Rotation CW/CCW, Maximum Input Horsepower 2.75 hp, Maximum Output Torque 2036 in-lb, Overhung Load Capacity 2,250 lb, Mounting Orientation Any Angle, Housing Material Aluminum, Bearing Type Ball, Housing Material Finish Tural
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.00
- Package Width: 11.00
- Package Height: 18.00
- Package Weight: 26.00
Product info last updated on January 22, 2026 11:31am UTC
Category: Bearings, V-belts and Power Transmission Equipment
