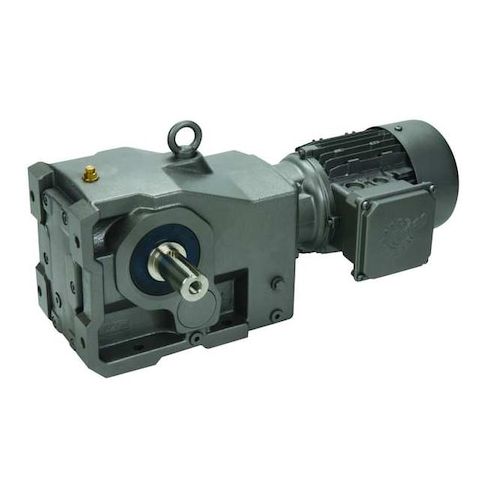

AC Gearmotor, 222 in-lb Max. Torque, 137 RPM Nameplate RPM, 230/460V AC Voltage, 3 Phase MPN:SK9012.1-71L/4-12.23-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3434252
AC Gearmotor, 222 in-lb Max. Torque, 137 RPM Nameplate RPM, 230/460V AC Voltage, 3 Phase
This AC gearmotor is designed for demanding applications requiring high torque and reliability. With a maximum torque of 222 in-lb and a nameplate RPM of 137, it's ideal for use in inverter duty applications, such as material handling, packaging, and conveyor systems. Its totally enclosed fan-cooled design and right-angle output shaft orientation make it suitable for a wide range of mounting orientations and applications. The gearmotor's high overhung load capacity of 1,296 lb and CW/CCW rotation make it a versatile solution for industries requiring precise control and high performance. It's a reliable choice for demanding applications.
Top product features:
- Totally enclosed fan-cooled motor enclosure for increased durability and protection from environmental factors
- Three-phase motor design for high power and efficiency in industrial applications
- Right-angle shaft orientation for increased flexibility and mounting options
Top product applications:
- Inverter Duty
- Totally Enclosed Fan-Cooled
- Any Angle Mounting Orientation
AC Gearmotor, Number of Output Shafts 1, Motor Type 3-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 137 RPM, Maximum Torque 222 in-lb, Overhung Load Capacity 1,296 lb, Rotation CW/CCW, Output Shaft Height 4.41 in, Mounting Orientation Any Angle, Operating Voltage 230/460V AC, Gear Ratio 12:1, Brake Type None, Output Location Left Hand, Shaft Orientation Right Angle, Seal Material Viton, Shaft Material Grade AISI 1045/AISI 4140, Application Inverter Duty
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 28.00
- Package Width: 11.50
- Package Height: 14.00
- Package Weight: 82.00
Product info last updated on March 14, 2026 6:26pm UTC
Category: Motors
