AC Gearmotor, 931 in-lb Max. Torque, 17 RPM Nameplate RPM, 230/460V AC Voltage, 3 Phase MPN:SK9012.1-63L/4-97.36-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1122177

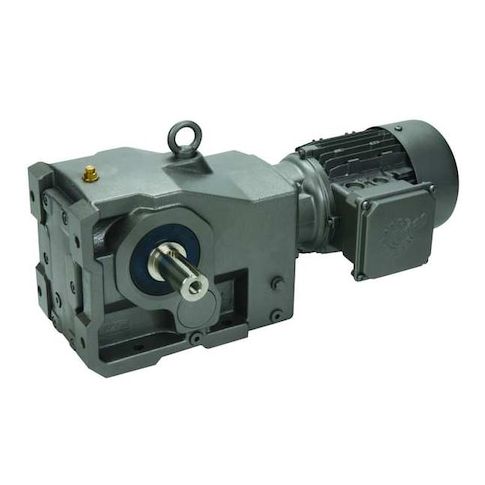

AC Gearmotor, 931 in-lb Max. Torque, 17 RPM Nameplate RPM, 230/460V AC Voltage, 3 Phase
This AC gearmotor from Nord is a high-performance solution for applications requiring precise control and reliability. With a maximum torque of 931 in-lb and a nameplate RPM of 17, it's ideal for use in inverter duty applications such as packaging machinery, conveyor systems, and material handling equipment. The totally enclosed fan-cooled motor and 97:1 gear ratio ensure efficient operation and long lifespan. The motor's compact design and right-angle shaft orientation make it easy to integrate into a variety of applications. Its CW/CCW rotation capability and overhung load capacity of 1,607 lb provide added flexibility and versatility.
Top product features:
- Totally Enclosed Fan-Cooled motor enclosure provides a durable and long-lasting design.
- 97:1 gear ratio enables precise control over speed and torque.
- AISI 1045/AISI 4140 shaft material provides high strength and durability.
Top product applications:
- Inverter Duty
- Totally Enclosed Fan-Cooled
- Right Angle
AC Gearmotor, Number of Output Shafts 1, Motor Type 3-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 17 RPM, Maximum Torque 931 in-lb, Overhung Load Capacity 1,607 lb, Rotation CW/CCW, Output Shaft Height 4.41 in, Mounting Orientation Any Angle, Operating Voltage 230/460V AC, Gear Ratio 97:1, Brake Type None, Output Location Left Hand, Shaft Orientation Right Angle, Seal Material Viton, Shaft Material Grade AISI 1045/AISI 4140, Application Inverter Duty
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 28.50
- Package Width: 11.50
- Package Height: 14.00
- Package Weight: 82.00
Product info last updated on March 19, 2026 5:16am UTC
Category: Motors
