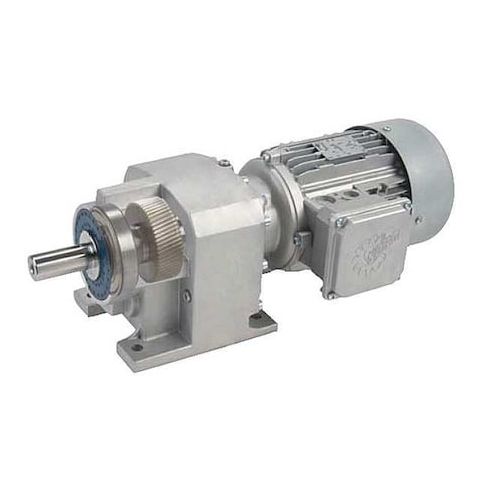

AC Gearmotor, 3, 540 in-lb Max. Torque, 90 RPM Nameplate RPM, 230/460V AC Voltage, 3 Phase MPN:SK572.1-112MP/4, 19.57
AC Gearmotor, 3, 540 in-lb Max. Torque, 90 RPM Nameplate RPM, 230/460V AC Voltage, 3 Phase
This AC gearmotor is a reliable and efficient solution for power transmission applications. With a maximum torque of 3,540 in-lb and a nameplate speed of 90 RPM, it can handle demanding tasks with precision and control. Its totally enclosed fan-cooled design ensures optimal performance in various environments, while its CW/CCW rotation capability provides flexibility in installation. Suitable for applications such as material handling, packaging, and conveyor systems, this gearmotor offers a durable and long-lasting solution for industries seeking to optimize productivity and efficiency. Its compact design also makes it ideal for space-constrained areas.
Top product features:
- Totally Enclosed Fan-Cooled Motor Enclosure provides a safe and reliable operating environment for the gearmotor.
- The gearmotor has a maximum torque of 3,540 in-lb, allowing for efficient power transmission in heavy-duty applications.
- The motor has a CW/CCW rotation capability, enabling users to choose the direction of rotation based on their specific needs.
Top product applications:
- Power Transmission
- Material Handling Equipment
- Machine Tool Applications
AC Gearmotor, Number of Output Shafts 1, Motor Type 3-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 90 RPM, Maximum Torque 3,540 in-lb, Overhung Load Capacity 1,109 lb, Rotation CW/CCW, Output Shaft Height 4.53 in, Mounting Orientation Horizontal, Operating Voltage 230/460V AC, Gear Ratio 19.57:1, Brake Type None, Shaft Orientation Inline, Shaft Material Grade AISI 1045/AISI 4140, Motor Insulation Class F, AGMA Gear Class Class 1, Application Power Transmission
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 35.00
- Package Width: 20.00
- Package Height: 19.00
- Package Weight: 119.00
Product info last updated on February 2, 2026 10:35am UTC
Category: Motors
