AC Gearmotor, 3, 540 in-lb Max. Torque, 90 RPM Nameplate RPM, 230/460V AC Voltage, 3 Phase MPN:SK572.1-100LP/4, 19.57
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0086600

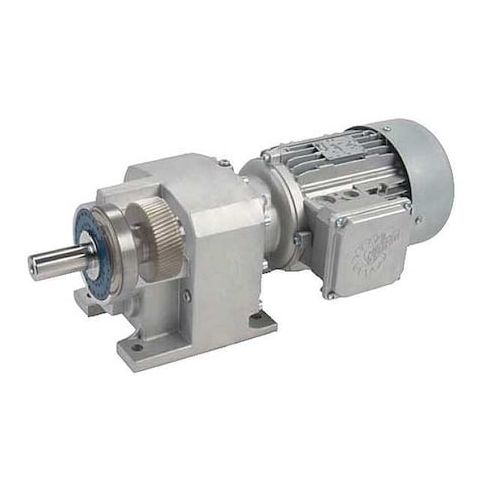

AC Gearmotor, 3, 540 in-lb Max. Torque, 90 RPM Nameplate RPM, 230/460V AC Voltage, 3 Phase
This AC gearmotor is designed for applications requiring high torque and low speed, such as material handling, packaging, and conveyor systems. Its 3-phase, totally enclosed fan-cooled design ensures efficient operation and long motor life. The gearmotor's 19.5:1 gear ratio provides a high level of torque output, while its CW/CCW rotation capability allows for flexible installation. With a maximum torque of 2,173 in-lb and an overhung load capacity of 1,846 lb, this gearmotor is suitable for demanding applications. Its compact design and horizontal mounting orientation make it ideal for space-constrained installations.
Top product features:
- Totally Enclosed Fan-Cooled motor enclosure for improved durability and reliability
- 3-Phase motor type for efficient power transmission and reduced energy consumption
- 19.5:1 gear ratio for high torque output and precise speed control
Top product applications:
- Power Transmission
- Material Handling Equipment
- Industrial Automation Systems
AC Gearmotor, Number of Output Shafts 1, Motor Type 3-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 90 RPM, Maximum Torque 2,173 in-lb, Overhung Load Capacity 1,846 lb, Rotation CW/CCW, Output Shaft Height 4.53 in, Mounting Orientation Horizontal, Operating Voltage 230/460V AC, Gear Ratio 19.5:1, Brake Type None, Shaft Orientation Inline, Shaft Material Grade AISI 1045/AISI 4140, Motor Insulation Class F, AGMA Gear Class Class 2, Application Power Transmission
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 31.50
- Package Width: 12.50
- Package Height: 14.50
- Package Weight: 102.00
