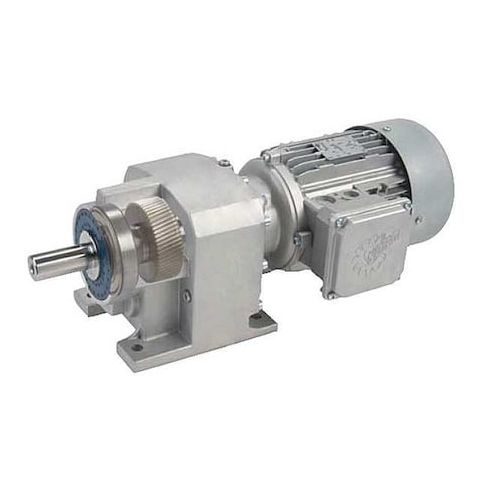

AC Gearmotor, 1, 682 in-lb Max. Torque, 51 RPM Nameplate RPM, 230/460V AC Voltage, 3 Phase MPN:SK372.1-80LP/4, 33.84
AC Gearmotor, 1, 682 in-lb Max. Torque, 51 RPM Nameplate RPM, 230/460V AC Voltage, 3 Phase
This Nord AC Gearmotor is designed for heavy-duty applications requiring high torque and precision control. With a maximum torque of 1,682 in-lb and a gear ratio of 33.84:1, it can handle demanding tasks such as power transmission and material handling. The motor's totally enclosed fan-cooled design and Class F insulation ensure reliable operation in harsh environments. Suitable for use in industrial settings, the gearmotor is perfect for applications such as conveyor systems, cranes, and hoists, where precise control and high torque are essential. Its compact design and versatility make it an ideal solution for a wide range of industries.
Top product features:
- Totally Enclosed Fan-Cooled motor enclosure for improved durability and reliability
- 3-Phase motor design for efficient power transmission and reduced energy consumption
- 33.84:1 gear ratio for precise speed control and increased torque output
Top product applications:
- Power Transmission
- Material Handling
- Conveyor Systems
AC Gearmotor, Number of Output Shafts 1, Motor Type 3-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 51 RPM, Maximum Torque 1,300 in-lb, Overhung Load Capacity 1,224 lb, Rotation CW/CCW, Output Shaft Height 3.54 in, Mounting Orientation Horizontal, Operating Voltage 230/460V AC, Gear Ratio 33.84:1, Brake Type None, Shaft Orientation Inline, Shaft Material Grade AISI 1045/AISI 4140, Motor Insulation Class F, AGMA Gear Class Class 1, Application Power Transmission
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 35.00
- Package Width: 20.00
- Package Height: 20.00
- Package Weight: 55.00
Product info last updated on February 18, 2026 10:25am UTC
Category: Motors
