AC Gearmotor, 3, 540 in-lb Max. Torque, 18 RPM Nameplate RPM, 230/460V AC Voltage, 3 Phase MPN:SK9012.1-80LP/4-97.36-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0086576
AC Gearmotor, 3, 540 in-lb Max. Torque, 18 RPM Nameplate RPM, 230/460V AC Voltage, 3 Phase

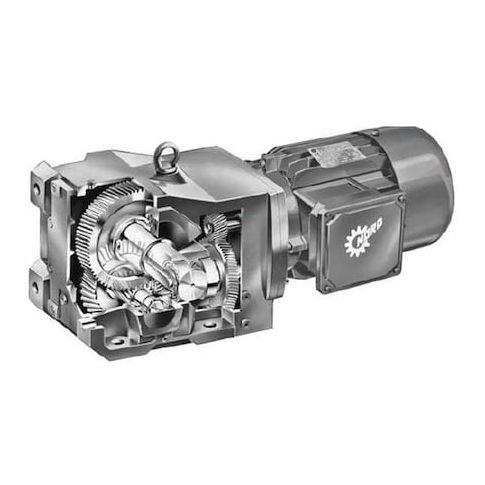

This Nord AC Gearmotor is designed for heavy-duty applications requiring high torque and low speed. With a maximum torque of 3,540 in-lb and a nameplate RPM of 18, it's ideal for uses such as material handling, packaging, and robotics. Its totally enclosed fan-cooled motor ensures reliable operation in harsh environments. The gearmotor's compact design and right-angle shaft orientation make it easy to integrate into a variety of systems. Its high torque-to-weight ratio and long lifespan make it a cost-effective solution for applications where efficiency and reliability are paramount.
Top product features:
- Totally Enclosed Fan-Cooled design provides a safe and reliable operating environment for the motor.
- Right Angle Shaft Orientation allows for compact and space-efficient mounting in applications where space is limited.
- 97.3:1 Gear Ratio provides high torque output and precise speed control for applications requiring low RPM operation.
Top product applications:
- Material Handling Equipment
- Packaging Machinery
- Conveyor Systems
AC Gearmotor, Number of Output Shafts 1, Motor Type 3-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 18 RPM, Maximum Torque 3,540 in-lb, Overhung Load Capacity 1,076 lb, Rotation CW/CCW, Output Shaft Height 4.41 in, Mounting Orientation Horizontal, Operating Voltage 230/460V AC, Gear Ratio 97.3:1, Brake Type None, Output Location Left Hand, Shaft Orientation Right Angle, Seal Material Viton, Shaft Material Grade AISI 1045/AISI 4140, Motor Insulation Class F
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 32.00
- Package Width: 23.50
- Package Height: 19.00
- Package Weight: 90.00
Product info last updated on February 18, 2026 7:24pm UTC
Category: Motors
