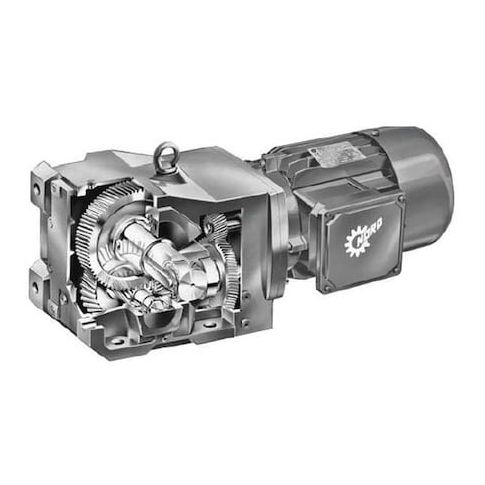

AC Gearmotor, 13, 722 in-lb Max. Torque, 19 RPM Nameplate RPM, 230/460V AC Voltage, 3 Phase MPN:SK9032.1-100LP/4-93.5-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0086549
AC Gearmotor, 13, 722 in-lb Max. Torque, 19 RPM Nameplate RPM, 230/460V AC Voltage, 3 Phase
This AC gearmotor from Nord is a high-performance solution for demanding industrial applications. With a maximum torque of 13,722 in-lb and a nameplate speed of 19 RPM, it provides reliable and efficient power transmission. Suitable for use in heavy-duty environments, it features a totally enclosed fan-cooled motor enclosure and a gear ratio of 95.5:1. Its compact design and right-angle shaft orientation make it ideal for space-constrained installations. Applications include material handling, conveyor systems, and heavy machinery. With its robust construction and high-torque output, this gearmotor is perfect for industries that require high-performance and reliability.
Top product features:
- Totally Enclosed Fan-Cooled motor enclosure provides a safe and reliable operating environment.
- The 95.5:1 gear ratio enables high torque output at a low nameplate speed.
- The motor insulation class F ensures reliable operation in high-temperature applications.
Top product applications:
- Material Handling and Conveying Systems
- Packaging Machinery and Equipment
- Automotive Assembly and Manufacturing Lines
AC Gearmotor, Number of Output Shafts 1, Motor Type 3-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 19 RPM, Maximum Torque 13,722 in-lb, Overhung Load Capacity 2,504 lb, Rotation CW/CCW, Output Shaft Height 7.09 in, Mounting Orientation Horizontal, Operating Voltage 230/460V AC, Gear Ratio 95.5:1, Brake Type None, Output Location Left Hand, Shaft Orientation Right Angle, Seal Material Viton, Shaft Material Grade AISI 1045/AISI 4140, Motor Insulation Class F
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 35.30
- Package Width: 20.50
- Package Height: 22.50
- Package Weight: 207.00
