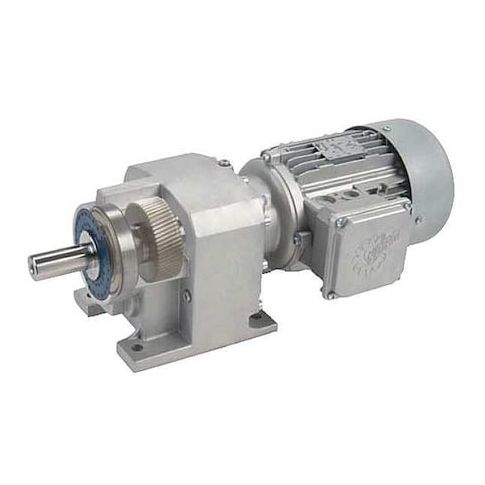

AC Gearmotor, 752 in-lb Max. Torque, 110 RPM Nameplate RPM, 230/460V AC Voltage, 3 Phase MPN:SK172.1-80LP/4, 15.76
AC Gearmotor, 752 in-lb Max. Torque, 110 RPM Nameplate RPM, 230/460V AC Voltage, 3 Phase
This Nord AC Gearmotor is a powerful and reliable solution for a wide range of applications, including power transmission, material handling, and conveyor systems. With a maximum torque of 752 in-lb and a nameplate RPM of 110, this gearmotor is designed to handle demanding tasks with ease. Its totally enclosed fan-cooled motor ensures efficient operation and long lifespan, while its inline shaft orientation and AISI 1045/AISI 4140 shaft material provide added durability. Suitable for horizontal mounting, this gearmotor is ideal for use in factories, warehouses, and other industrial settings where heavy-duty performance is required.
Top product features:
- Totally Enclosed Fan-Cooled motor enclosure provides a safe and reliable operating environment.
- 3-Phase motor design allows for efficient and high-torque operation.
- 15.76:1 gear ratio enables precise and controlled speed reduction.
Top product applications:
- Power Transmission
- Industrial Automation
- Material Handling Equipment
AC Gearmotor, Number of Output Shafts 1, Motor Type 3-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 110 RPM, Maximum Torque 602 in-lb, Overhung Load Capacity 630 lb, Rotation CW/CCW, Output Shaft Height 2.95 in, Mounting Orientation Horizontal, Operating Voltage 230/460V AC, Gear Ratio 15.76:1, Brake Type None, Shaft Orientation Inline, Shaft Material Grade AISI 1045/AISI 4140, Motor Insulation Class F, AGMA Gear Class Class 1, Application Power Transmission
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 21.50
- Package Width: 12.50
- Package Height: 14.50
- Package Weight: 50.00
Product info last updated on March 15, 2026 9:43am UTC
Category: Motors
