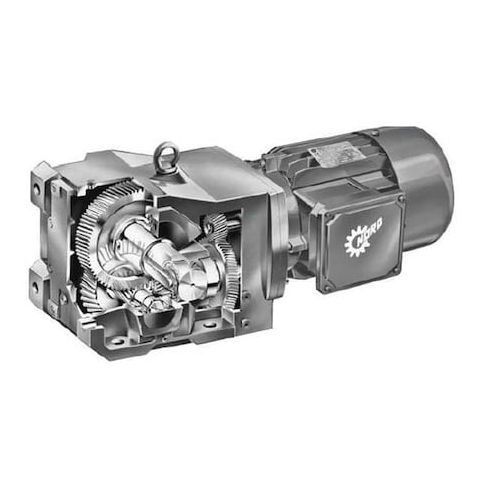

AC Gearmotor, 3, 540 in-lb Max. Torque, 42 RPM Nameplate RPM, 230/460V AC Voltage, 3 Phase MPN:SK9012.1-90SP/4-41.65-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0086418
AC Gearmotor, 3, 540 in-lb Max. Torque, 42 RPM Nameplate RPM, 230/460V AC Voltage, 3 Phase
This Nord AC Gearmotor is a reliable and efficient solution for various industrial applications, including material handling, conveyor systems, and packaging equipment. Its high torque output of 3,540 in-lb and low RPM of 42 make it ideal for applications requiring precise control and consistent speed. The motor's totally enclosed fan-cooled design ensures long-lasting performance in harsh environments. With a maximum overhung load capacity of 1,438 lb, this gearmotor can handle demanding tasks with ease. Its compact design and right-angle shaft orientation make it easy to integrate into new or existing systems, providing a reliable and efficient solution for a wide range of industrial applications.
Top product features:
- Totally Enclosed Fan-Cooled motor design provides a cool and quiet operation.
- 3-Phase motor type allows for efficient and reliable power delivery.
- 41.6:1 gear ratio enables high torque output at low RPM.
Top product applications:
- Material Handling Equipment
- Textile Machinery
- Conveyor Systems
AC Gearmotor, Number of Output Shafts 1, Motor Type 3-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 42 RPM, Maximum Torque 3,540 in-lb, Overhung Load Capacity 1,438 lb, Rotation CW/CCW, Output Shaft Height 4.41 in, Mounting Orientation Horizontal, Operating Voltage 230/460V AC, Gear Ratio 41.6:1, Brake Type None, Output Location Left Hand, Shaft Orientation Right Angle, Seal Material Viton, Shaft Material Grade AISI 1045/AISI 4140, Motor Insulation Class F
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 32.00
- Package Width: 24.00
- Package Height: 19.50
- Package Weight: 101.00
Product info last updated on February 5, 2026 11:04am UTC
Category: Motors
