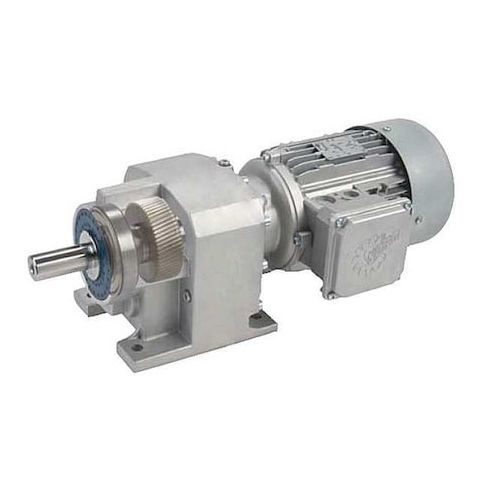

AC Gearmotor, 3, 806 in-lb Max. Torque, 114 RPM Nameplate RPM, 230/460V AC Voltage, 3 Phase
This AC gearmotor is designed for heavy-duty applications requiring high torque and reliability. With a maximum torque of 2,811 in-lb and an operating voltage of 230/460V AC, it can handle demanding tasks such as power transmission in industrial settings. The motor's totally enclosed fan-cooled enclosure keeps it cool and quiet, while the 15.38:1 gear ratio provides efficient speed reduction. Suitable for applications like material handling, conveyor systems, and heavy machinery, this gearmotor offers a reliable and cost-effective solution for industries seeking to optimize their operations. Its compact design and horizontal mounting orientation make it easy to integrate into existing systems.
Top product features:
- Three-phase motor provides power transmission
- Totally enclosed fan-cooled motor enclosure for reduced heat buildup
- Gear ratio of 15.38:1 for increased torque and reduced speed
Top product applications:
- Power Transmission
- Industrial Automation
- Material Handling Equipment
AC Gearmotor, Number of Output Shafts 1, Motor Type 3-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 114 RPM, Maximum Torque 2,811 in-lb, Overhung Load Capacity 1,209 lb, Rotation CW/CCW, Output Shaft Height 4.53 in, Mounting Orientation Horizontal, Operating Voltage 230/460V AC, Gear Ratio 15.38:1, Brake Type None, Shaft Orientation Inline, Shaft Material Grade AISI 1045/AISI 4140, Motor Insulation Class F, AGMA Gear Class Class 2, Application Power Transmission
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 19 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 35.00
- Package Width: 20.00
- Package Height: 19.00
- Package Weight: 120.00
