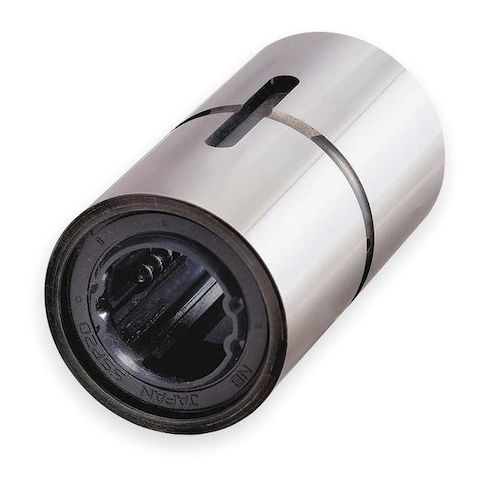

Ball Spline Nut, 6 mm Bore Dia x 25 mm L MPN:SSP 6
Ball Spline Nut, 6 mm Bore Dia x 25 mm L
The NIPPON BEARING Ball Spline Nut is a precision-engineered component ideal for applications requiring self-alignment and high load capacity. Its compact 6mm bore diameter and 25mm length make it suitable for use in robotics, medical devices, and other precision machinery. The nut's carbon steel construction and self-aligning design enable smooth operation and reduced wear, while its high static load capacity of 512 lbf ensures reliable performance in demanding applications. With a maximum operating temperature of 176°F, this ball spline nut is suitable for use in a variety of industries, including aerospace, automotive, and industrial automation.
Top product features:
- Self-Alignment allows for precise movement and positioning in applications where misalignment is a concern.
- Carbon Steel construction provides high strength and durability in demanding environments.
- Static Load Capacity of 512 lbf enables the Ball Spline Nut to support heavy loads and withstand significant stress.
Top product applications:
- Robotics and automation applications
- Linear actuators and precision positioning systems
- High-speed printing and packaging machinery
Ball Spline Nut, System of Measurement Metric, Inside Diameter 6 mm, Outside Diameter 14 mm, Self-Alignment Self-Aligning, Overall Length 25 mm, Material Carbon Steel, Series SSP, Static Load Capacity 512 lbf, Steady State Speed 3 m/sec, Maximum Operating Temperature 176 Degrees F, Inside Diameter Tolerance +0/-0.012 mm, Accelerated Speed -, Outside Diameter Tolerance +0/-0.011 mm
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.10
- Package Width: 1.00
- Package Height: 1.60
- Package Weight: 0.05
Product info last updated on February 27, 2026 3:17am UTC
Category: Bearings, V-belts and Power Transmission Equipment
