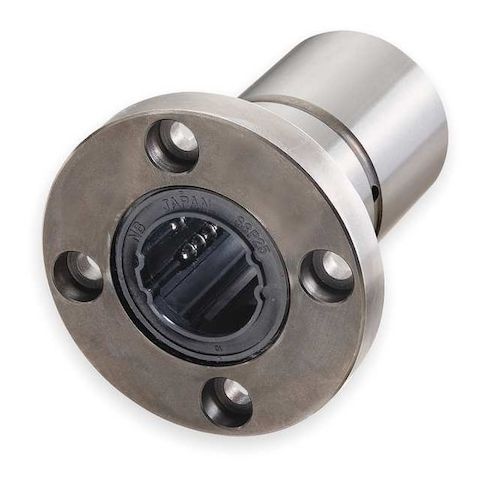

Ball Spline Nut, 18.2 mm, 60 mm L MPN:SSPF 20
Ball Spline Nut, 18.2 mm, 60 mm L
The NIPPON BEARING Ball Spline Nut is a high-performance component designed for applications requiring precise movement and minimal friction. With a dynamic load capacity of 83 N and static load capacity of 500 N, this nut is ideal for use in robotics, aerospace, and industrial automation. Its compact 60 mm length and 32 mm outside diameter make it perfect for tight spaces. The nut's carbon steel/resin construction and oil hole design ensure smooth operation and long lifespan. Suitable for steady-state speeds up to 2 mps, this ball spline nut is a reliable choice for demanding applications.
Top product features:
- Ball Spline Nut has a lubrication oil hole for reduced wear and tear.
- Ball Spline Nut has a dynamic load capacity of 83 N for heavy-duty applications.
- Ball Spline Nut is made of carbon steel/resin for increased durability and resistance to corrosion.
Top product applications:
- Conveyor systems
- Robotics and automation
- Precision machinery
Ball Spline Nut, Inside Diameter 18.2 mm, Outside Diameter 32 mm, Flange Width Not Applicable, Overall Length 60 mm, Flange Diameter 51 mm, Dynamic Load Capacity 83 N, Flange Thickness 7 mm, Material Carbon Steel/Resin, Lubrication Oil Hole, Series SSPF, Static Load Capacity 500 N, Steady State Speed 2 mps, System of Measurement Metric, Maximum Operating Temperature 176 Degrees F, Minimum Operating Temperature Not Available, Bolt Size -, Includes Seals Seals Included, Body Width Not Applicable
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 2.20
- Package Height: 2.20
- Package Weight: 0.54
Product info last updated on March 11, 2026 8:30pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
