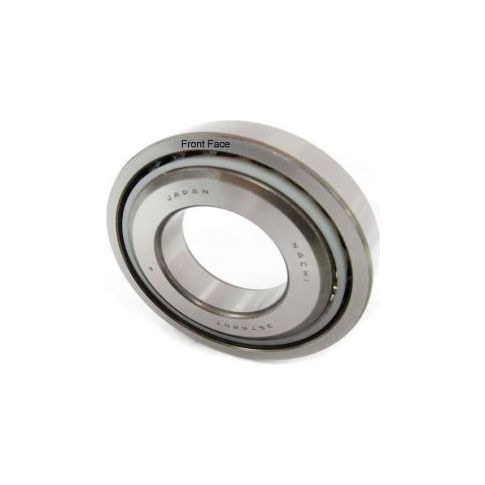

NACHI Ball Screw Support Bearing 45TAB10UP4 Single Flush Ground 45MM Bore 100MM OD 45TAB10UP4
NACHI Ball Screw Support Bearing 45TAB10UP4 Single Flush Ground 45MM Bore 100MM OD
Elevate your precision and speed with NACHI Ball Screw Support Bearings, engineered to support high-performance ball screws in demanding applications. These bearings boast exceptional stiffness, outperforming conventional angular contact ball bearings with their increased number of balls. With a pre-set preload, complicated adjustments and torque measurements are eliminated, ensuring seamless operation. Flush ground bearings enable versatile DB, DF, or DT assembly, making them suitable for a wide range of industries, including aerospace, medical devices, and high-speed machinery. Experience improved precision, reduced maintenance, and increased productivity with NACHI Ball Screw Support Bearings.
Top product features:
- These bearings are designed to support ball screws that are used as actuators of high precision and high speed machines
- Their stiffness is much greater than conventional angular contact ball bearings as these have a greater number of balls
- Flush ground bearings can be used in db (back to back) df (face to face) or dt (tandem) assembly
Top product applications:
- High precision and high speed machines
- Actuators of CNC machines
- Automotive industry components, such as steering systems and gearboxes
Features ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" these bearings are designed to support ball screws that are used as actuators of high precision and high speed machines their stiffness is much greater than conventional angular contact ball bearings as these have a greater number of balls these bearings are supplied with a pre-set preload to eliminate complicated adjustment and torque measurement flush ground bearings (suffix du or u) can be used in db (back to back) df (face to face) or dt (tandem) assembly note - load ratings when single flush ground bearing (suffix u) is assembled in duplex and axial load is applied to 2 rows or 3 rows load rating listed is to be multiplied by 1.62 or 2.16 respectively for dynamic and multiplied by 2 or 3 respectively for axial limiting load.
Additional Information
- UNSPSC: 31171531
- Brand: Nachi America Inc
- Package Quantity: 1
- Country of Origin: JP
- FOB Origin: IN
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 6.00
- Package Width: 6.00
- Package Height: 6.00
- Package Weight: 1.74
Product info last updated on August 16, 2025 7:30am UTC
Category: Bearings
