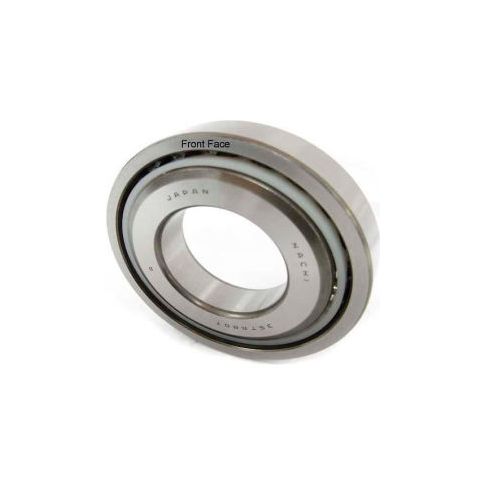

NACHI Ball Screw Support Bearing 40TAB09UP4 Single Flush Ground 40MM Bore 90MM OD 40TAB09UP4
NACHI Ball Screw Support Bearing 40TAB09UP4 Single Flush Ground 40MM Bore 90MM OD
This NACHI Ball Screw Support Bearing is designed to support high-precision and high-speed machines, offering exceptional stiffness and performance. Its unique design features a greater number of balls than conventional angular contact ball bearings, making it ideal for applications requiring high accuracy and reliability. The bearing is supplied with a pre-set preload, eliminating the need for complicated adjustments and torque measurements. Suitable for use in DB, DF, or DT assembly, this bearing is perfect for machine tools, medical devices, and other high-precision machinery, providing smooth operation and extended lifespan. Its compact design and high load capacity make it an excellent choice for various industrial applications.
Top product features:
- These bearings are designed to support ball screws that are used as actuators of high precision and high speed machines
- Their stiffness is much greater than conventional angular contact ball bearings as these have a greater number of balls
- Flush ground bearings can be used in db (back to back), df (face to face), or dt (tandem) assembly
Top product applications:
- High precision and high speed machines
- High precision linear motion systems
- High speed and high precision CNC machines
Features ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" these bearings are designed to support ball screws that are used as actuators of high precision and high speed machines their stiffness is much greater than conventional angular contact ball bearings as these have a greater number of balls these bearings are supplied with a pre-set preload to eliminate complicated adjustment and torque measurement flush ground bearings (suffix du or u) can be used in db (back to back) df (face to face) or dt (tandem) assembly note - load ratings when single flush ground bearing (suffix u) is assembled in duplex and axial load is applied to 2 rows or 3 rows load rating listed is to be multiplied by 1.62 or 2.16 respectively for dynamic and multiplied by 2 or 3 respectively for axial limiting load.
Additional Information
- UNSPSC: 31171531
- Brand: Nachi America Inc
- Package Quantity: 1
- Country of Origin: JP
- FOB Origin: IN
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 6.00
- Package Width: 6.00
- Package Height: 6.00
- Package Weight: 1.37
Product info last updated on March 13, 2025 9:00am UTC
Category: Bearings
