NACHI Ball Screw Support Bearing 30TAB06UP4 Single Flush Ground 30MM Bore 62MM OD 30TAB06UP4

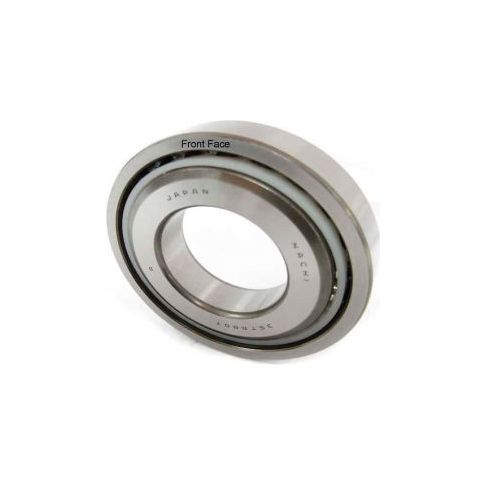

NACHI Ball Screw Support Bearing 30TAB06UP4 Single Flush Ground 30MM Bore 62MM OD
This NACHI Ball Screw Support Bearing is designed for high-precision and high-speed machines, offering exceptional stiffness and reliability. Its pre-set preload eliminates complicated adjustments and torque measurements, making it easy to integrate into various applications. Suitable for use in ball screws, these bearings can be assembled in different configurations, including duplex, face-to-face, and tandem arrangements. Ideal for use in industries such as aerospace, medical devices, and precision machinery, this bearing provides a high level of precision and accuracy, ensuring optimal performance and minimizing downtime. Its compact design and reliable performance make it a valuable component in high-performance machinery.
Top product features:
- These bearings are designed to support ball screws that are used as actuators of high precision and high speed machines.
- Their stiffness is much greater than conventional angular contact ball bearings.
- Flush ground bearings can be used in db (back to back), df (face to face), or dt (tandem) assembly.
Top product applications:
- High precision and high speed machine actuators
- High precision and high speed machine tool spindles
- High precision and high speed machine gearboxes
Features ul style"margin-top0px; padding-top 5px; padding-bottom 5px;" these bearings are designed to support ball screws that are used as actuators of high precision and high speed machines their stiffness is much greater than conventional angular contact ball bearings as these have a greater number of balls these bearings are supplied with a pre-set preload to eliminate complicated adjustment and torque measurement flush ground bearings (suffix du or u) can be used in db (back to back) df (face to face) or dt (tandem) assembly note - load ratings when single flush ground bearing (suffix u) is assembled in duplex and axial load is applied to 2 rows or 3 rows load rating listed is to be multiplied by 1.62 or 2.16 respectively for dynamic and multiplied by 2 or 3 respectively for axial limiting load.
Additional Information
- UNSPSC: 31171531
- Brand: Nachi America Inc
- Package Quantity: 1
- Country of Origin: JP
- FOB Origin: IN
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 6.00
- Package Width: 6.00
- Package Height: 6.00
- Package Weight: 0.46
Product info last updated on May 19, 2025 3:11am UTC
Category: Bearings
