Nachi 7316BMUC3 Angular Contact Ball Bearing Flush Ground 80MM Bore x 170MM OD x 39MM W 7316BMUC3
Nachi 7316BMUC3 Angular Contact Ball Bearing Flush Ground 80MM Bore x 170MM OD x 39MM W

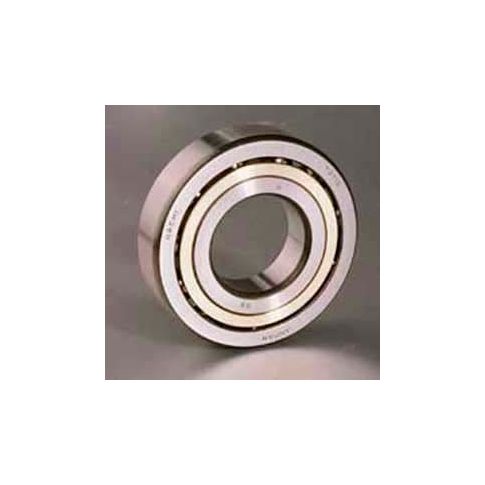

The Nachi 7316BMUC3 Angular Contact Ball Bearing is a high-performance bearing designed to handle combined loads of radial and axial forces. Its 40-degree contact angle allows for flexibility in mounting configurations, including DB, DF, or DT pairs, and can be combined to form triplex or quadruplex sets. This bearing is ideal for applications requiring high precision and reliability, such as industrial machinery, aerospace, and automotive systems. Its flush ground design provides optimal clearance and smooth operation, making it a reliable choice for demanding applications where precision and durability are paramount.
Top product features:
- Angular contact ball bearings can sustain combined loads of simultaneously acting radial and axial loads as the bearings have 40 degree contact angles.
- Any combination of these bearings provides desired clearance.
- Universal flush grinding permits these bearings to be mounted in db df or dt pairs or combined to form triplex or quadruplex sets.
Top product applications:
- High Precision Machinery
- High Speed Spindles
- Gearboxes
Nachi 7316bmuc3 angular contact ball bearing flush ground 80mm bore x 170mm od x 39mm w angular contact ball bearings can sustain combined loads of simultaneously acting radial and axial loads as the bearings have 40 degree contact angles. Any combination of nachi flush ground angular contact ball bearings provides desired clearance. Universal flush grinding permits these bearings to be mounted in db df or dt pairs or combined to form triplex or quadruplex sets.
Additional Information
- UNSPSC: 31171531
- Brand: Nachi America Inc
- Package Quantity: 1
- Country of Origin: JP
- FOB Origin: IN
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Weight: 9.21
Product info last updated on May 19, 2025 2:59am UTC
Category: Bearings
