Cordset, Straight, 63V, 16A MPN:7000-P4591-0000000
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G711209003
Cordset, Straight, 63V, 16A

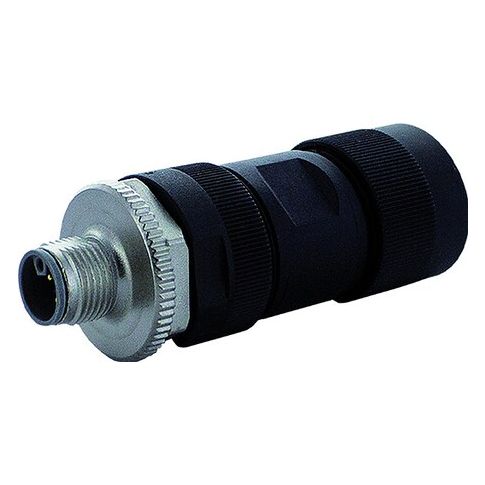

This MURRELEKTRONIK cordset is a reliable and durable solution for various industrial applications, including automation, robotics, and power transmission. The 63V, 16A straight cordset features a robust circular connector with 5 poles and a screw locking mechanism, ensuring secure connections and high current transmission. With a temperature range of -40 to 185°F and IP67 rating, this cordset withstands harsh environments and heavy use, making it ideal for applications in manufacturing, oil and gas, and other industries where reliable power transmission is critical. Its compact design and high-performance capabilities make it a valuable addition to any industrial setup.
Top product features:
- Has a 5-pole circular connector with a screw mounting style
- Supports a maximum operating temperature of 185 Degrees F
- Has a locking style screw connection for secure mating cycles
Top product applications:
- Industrial Automation Systems
- Machine Tool Automation
- Solar Panel Installation Equipment
Circular Connector, Mounting Style Screw, Number of Poles 5, Coding L, Connection Type Screw, Thread Size M12, Voltage Rating 63V AC/63V DC, Nominal Voltage 63V AC, Nominal Current 16 A, Locking Style Screw Connection, Housing Material PA, Connector Body Type Pin, Conductor Cross Section Size 2.5 sq mm, Cable Outside Diameter 13 mm, Connector Orientation Straight, Minimum Mating Cycles 100, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature -40 Degrees F, IP Rating IP67
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 49 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.00
- Package Width: 14.00
- Package Height: 14.00
- Package Weight: 0.06
Product info last updated on February 22, 2026 4:32am UTC
Category: Industrial Electrical Controls and Automation
