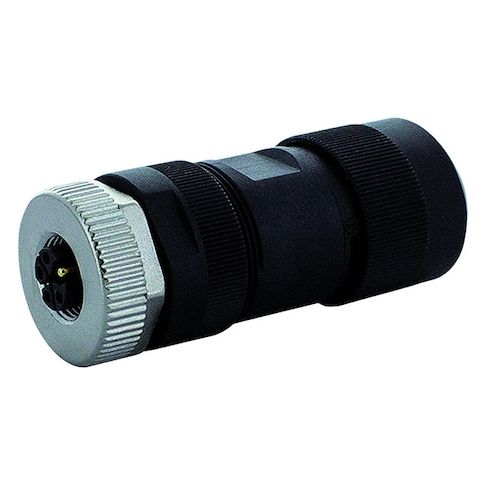

Cordset, Straight, 63V, 16A MPN:7000-P4611-0000000
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G111209061
Cordset, Straight, 63V, 16A
The MURRELEKTRONIK Cordset is a reliable and versatile solution for a variety of industrial applications. Its 63V, 16A rating makes it suitable for use in high-power devices, while its compact size and screw-type connection ensure easy installation and secure connections. With a temperature range of -40°C to 185°F, this cordset can withstand demanding environments and heavy use. Perfect for machine automation, robotics, and other industrial control systems, the MURRELEKTRONIK Cordset provides reliable and efficient connectivity. Its durability and long lifespan make it an ideal choice for applications where downtime is costly.
Top product features:
- Straight connector design allows for easy mating and unmating of the cordset.
- Screw locking style ensures secure connection and prevents accidental disconnection.
- Conductor cross section size of 2.5 sq mm supports high current applications up to 16 A.
Top product applications:
- Industrial Automation
- Machine Tool Control
- Process Control Systems
Circular Connector, Mounting Style Screw, Number of Poles 5, Coding L, Connection Type Screw, Thread Size M12, Voltage Rating 63V AC/63V DC, Nominal Voltage 63V AC, Nominal Current 16 A, Locking Style Screw Connection, Housing Material PA, Connector Body Type Socket, Conductor Cross Section Size 2.5 sq mm, Cable Outside Diameter 13 mm, Connector Orientation Straight, Minimum Mating Cycles 100, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature -40 Degrees F
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 49 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.00
- Package Width: 14.00
- Package Height: 14.00
- Package Weight: 0.12
Product info last updated on January 15, 2026 4:26am UTC
Category: Industrial Electrical Controls and Automation
