Y Strainer, 1/2" Pipe, FNPT x FNPT, Cast Carbon Steel MPN:1/2 581 CS screwed end
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3175094

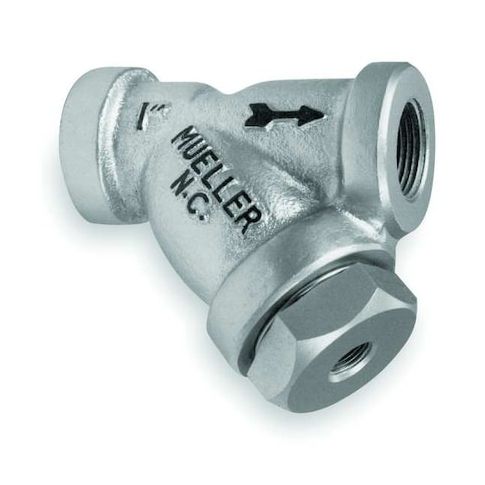

Y Strainer, 1/2" Pipe, FNPT x FNPT, Cast Carbon Steel
This Mueller Y Strainer is a reliable and durable solution for various piping applications, including steam and water systems. Its 1/2in pipe size and 3in length make it suitable for a range of installations. The strainer's 304 stainless steel screen and cast carbon steel housing ensure maximum protection against debris and corrosion. With a maximum pressure rating of 1,015 psi and temperature rating of 100°F, it can handle demanding environments. The strainer's compact design and Cv flow factor of 5 gpm make it an efficient choice for applications where flow control is crucial.
Top product features:
- Cast Carbon Steel construction provides durability and resistance to corrosion.
- The 304 Stainless Steel screen allows for high-flow rates and effective filtration of liquids.
- The blow-off port with a 1/4 in connection enables easy removal of debris and sediment.
Top product applications:
- Steam distribution systems
- Water treatment systems
- Industrial process piping
Y Strainer, Pipe Size 1/2 in, Maximum Pressure at 100 deg F 1,480 psi, Length 3 in, Height 4 1/2 in, Blow Off Port 1/4 in, Screen Material 304 Stainless Steel, Perforated Screen Size 0.062 in, Mesh Size Not Applicable, Housing Material Carbon Steel, Class 600, Cv Flow Factor 5 gpm, For Use With Steam, Water, Includes Screen Screen Included, Maximum Pressure 1,015 psi, Maximum Temperature 100 Degrees F, Port 1 Connection Size 1/2 in, Port 1 Connection Type NPT, Port 1 Gender Female
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.80
- Package Width: 5.60
- Package Height: 4.60
- Package Weight: 1.75
Product info last updated on February 21, 2026 3:38pm UTC
Category: Filtration
