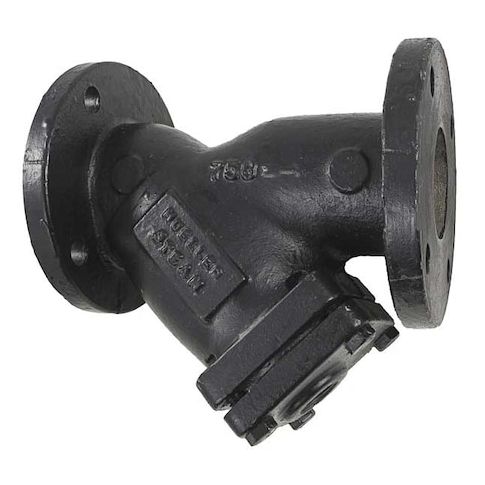

Y Strainer, 2" Pipe, Flanged, Cast iron, 200 psi at 150 Degrees F WOG, 125 psi at 450 Degrees F WSP MPN:2 758N
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2125487
Y Strainer, 2" Pipe, Flanged, Cast iron, 200 psi at 150 Degrees F WOG, 125 psi at 450 Degrees F WSP
The Mueller Y Strainer is a reliable and efficient solution for various industrial applications, including steam and water systems. Its cast iron construction and 304 stainless steel screen ensure durability and corrosion resistance, allowing for maximum pressure and temperature ratings of 200 psi at 150°F WOG and 125 psi at 450°F WSP. The strainer's flanged connections and blow-off port facilitate easy installation and maintenance, making it ideal for use in chemical processing, power generation, and other high-pressure applications where fluid purity and flow control are critical.
Top product features:
- Cast iron construction for durability and resistance to corrosion
- 304 stainless steel screen for high flow rates and resistance to corrosion
- Perforated screen size of 0.062 in for effective particle capture and flow regulation
Top product applications:
- Steam distribution systems
- Water treatment facilities
- Industrial process piping
Y Strainer, Pipe Size 2 in, Maximum Pressure at 100 deg F 200 psi, Length 7 7/8 in, Height 8 1/2 in, Blow Off Port 1/2 in, Screen Material 304 Stainless Steel, Perforated Screen Size 0.062 in, Mesh Size Not Applicable, Housing Material Cast Iron, Class 125, Cv Flow Factor 70 gpm, For Use With Steam, Water, Includes Screen Screen Included, Maximum Pressure 200 psi, Maximum Temperature 150 Degrees F, Port 1 Connection Size 2 in, Port 1 Connection Type Flanged, Port 2 Connection Size 2 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.50
- Package Width: 8.40
- Package Height: 7.20
- Package Weight: 19.45
Product info last updated on January 31, 2026 11:19pm UTC
Category: Filtration
