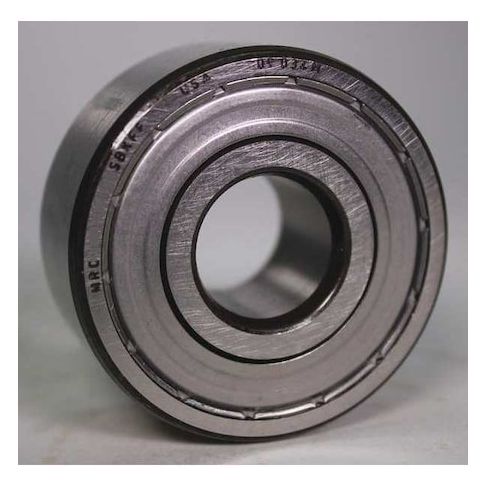

Bearing, 12mm, 10, 400 N, Double Shield MPN:5201SBKFF
Bearing, 12mm, 10, 400 N, Double Shield
This MRC 12mm Double Shield Angular Contact Ball Bearing is designed for high-speed applications, with a maximum speed of 20,000 RPM and operating temperature range of -20 to 125°C. Suitable for use in precision machinery, robotics, and industrial equipment, it features a polyamide cage and polyrex lubricant for smooth operation. Its double shielded design provides excellent protection against debris and contamination, ensuring reliable performance and extended bearing life. Ideal for applications requiring precision and accuracy, such as medical devices, aerospace, and automotive systems, this bearing delivers high performance and reliability in demanding environments.
Top product features:
- Double Shielded closure protects the bearing from debris and contamination
- 30-degree contact angle allows for angular motion and improved load capacity
- Maximum speed of 20,000 RPM enables high-performance applications
Top product applications:
- High-speed machinery such as gearboxes and motors
- Precision instruments such as precision clocks and watches
- Aerospace and defense applications requiring high-speed and high-temperature operation
Angular Contact Ball Bearing, Bearing Industry Number 3201/5201, Bore Diameter 12 mm, Cage Material Polyamide, Closure Double Shielded, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Lubricant Material Polyrex, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 20,000 RPM, Maximum Temperature 125 Degrees C, Minimum Temperature -20 Degrees C, Number of Rows Two, Outside Diameter 32 mm, Overall Width 15.9 mm, Ring Material Alloy Steel, System of Measurement Metric
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 1.80
- Package Height: 0.90
- Package Weight: 0.15
Product info last updated on January 31, 2026 11:05pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
