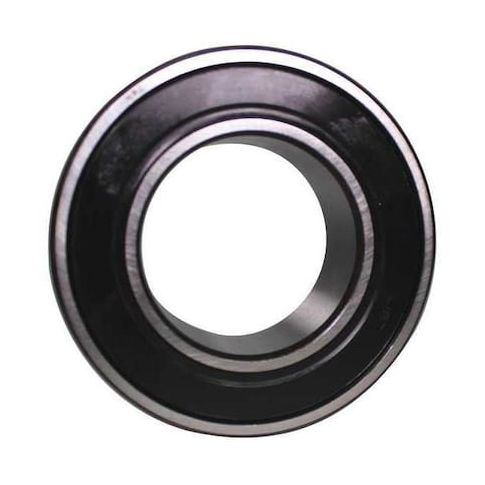

Bearing, 12mm, 10, 400 N, Double Seal MPN:5201SBKZZ
Bearing, 12mm, 10, 400 N, Double Seal
This 12mm angular contact ball bearing from MRC is designed for high-speed applications requiring precise control and reliability. With a double seal and polyamide cage, it provides long-lasting protection against contaminants and wear. The bearing's 30-degree contact angle and high-speed rating of 15,000 RPM make it ideal for use in precision machinery, robotics, and other industrial equipment. Its operating temperature range of -20 to 105°C allows for use in a variety of environments, from cold storage to high-temperature manufacturing processes. Its compact size and lightweight design make it suitable for use in a range of applications.
Top product features:
- Double sealed for enhanced protection against dust and moisture
- Polyamide cage material for improved strength and durability
- Lubricant material Polyrex for reduced friction and increased bearing performance
Top product applications:
- High-speed machinery such as gearboxes and motors
- Aerospace applications where high-speed and high-temperature operation is required
- Automotive applications such as high-performance engines and transmissions
Angular Contact Ball Bearing, Bearing Industry Number 3201/5201, Bore Diameter 12 mm, Cage Material Polyamide, Closure Double Sealed, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Lubricant Material Polyrex, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 15,000 RPM, Maximum Temperature 105 Degrees C, Minimum Temperature -20 Degrees C, Number of Rows Two, Outside Diameter 32 mm, Overall Width 15.9 mm, Ring Material Alloy Steel, Seal Type Contact
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 1.80
- Package Height: 0.80
- Package Weight: 0.15
Product info last updated on January 15, 2026 6:59pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
