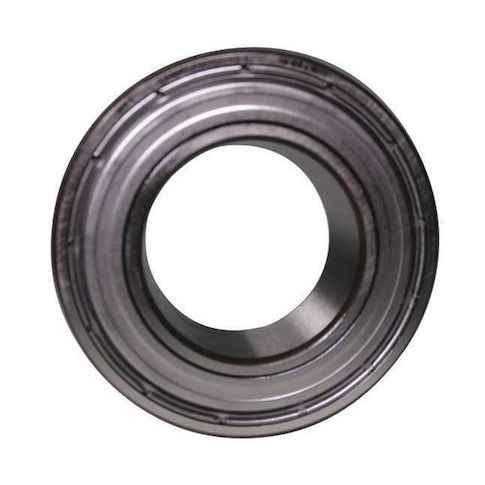

Bearing, 20mm, 19, 000 N, Double Shield MPN:5204CFF
Bearing, 20mm, 19, 000 N, Double Shield
This high-performance 20mm Angular Contact Ball Bearing from MRC is designed for demanding applications requiring precision and reliability. Suitable for use in high-speed machinery, the bearing's 30-degree contact angle and double shielded design provide excellent load-carrying capacity and protection against contamination. With a maximum speed of 13,000 RPM and a temperature range of -20 to 125°C, this bearing is ideal for use in industrial equipment, robotics, and aerospace applications. Its compact size and high-speed capabilities make it an excellent choice for reducing downtime and increasing productivity in a variety of industries.
Top product features:
- Double shielded design provides protection from contaminants and debris
- Bearing is lubricated with a high-performance polyrex lubricant
- Contact angle of 30 degrees allows for high precision and stability in angular contact applications
Top product applications:
- High-speed machinery such as wind turbines or aerospace equipment
- Industrial gearboxes and power transmission systems
- Precision robotics and automation systems
Angular Contact Ball Bearing, Bearing Industry Number 3204/5204, Bore Diameter 20 mm, Cage Material Steel, Closure Double Shielded, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Lubricant Material Polyrex, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 13,000 RPM, Maximum Temperature 125 Degrees C, Minimum Temperature -20 Degrees C, Number of Rows Two, Outside Diameter 47 mm, Overall Width 20.6 mm, Ring Material Alloy Steel, System of Measurement Metric
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.10
- Package Width: 2.20
- Package Height: 1.00
- Package Weight: 0.35
Product info last updated on January 14, 2026 11:46am UTC
Category: Bearings, V-belts and Power Transmission Equipment
