Bearing, 25mm, 20, 800 N, Steel MPN:5205C
Bearing, 25mm, 20, 800 N, Steel

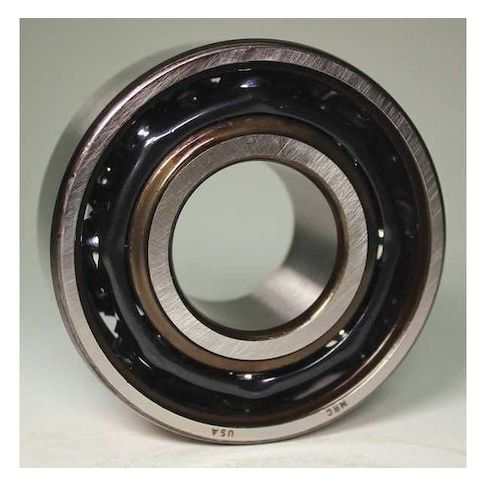

The MRC 3205/5205 25mm Angular Contact Ball Bearing is a high-performance bearing designed for demanding applications. With a maximum speed of 11,000 RPM and a temperature range of -20 to 125°C, this bearing is ideal for use in high-speed machinery, industrial equipment, and precision instruments. Its angular contact design provides excellent load-carrying capacity and stability, making it suitable for applications such as gearboxes, motors, and pumps. The bearing's ABEC 1 rating ensures precise tolerances and long lifespan, making it a reliable choice for industries requiring high precision and reliability.
Top product features:
- Angular contact ball bearing design allows for high precision and smooth operation in demanding applications.
- Two-row construction provides increased load-carrying capacity and stability.
- 30-degree contact angle enables efficient handling of radial and axial loads.
Top product applications:
- High-speed machinery such as CNC machines and spindles
- Automotive applications including steering and suspension systems
- Industrial equipment including gearboxes and pumps
Angular Contact Ball Bearing, Bearing Industry Number 3205/5205, Bore Diameter 25 mm, Cage Material Steel, Closure Open, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 11,000 RPM, Maximum Temperature 125 Degrees C, Minimum Temperature -20 Degrees C, Number of Rows Two, Outside Diameter 52 mm, Overall Width 20.6 mm, Ring Material Alloy Steel, System of Measurement Metric, ABEC Rating 1
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.20
- Package Width: 2.10
- Package Height: 1.00
- Package Weight: 0.40
Product info last updated on February 1, 2026 12:13am UTC
Category: Bearings, V-belts and Power Transmission Equipment
