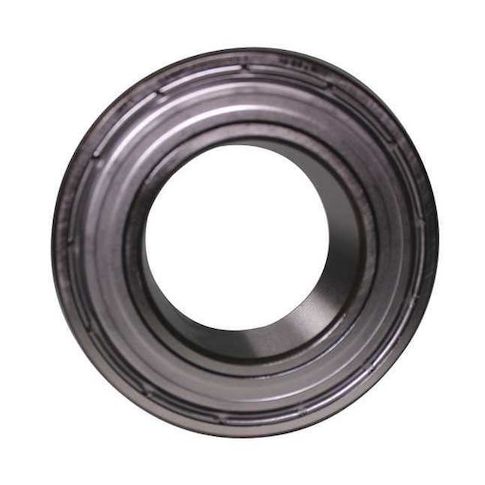

Angular Brg, 3206/5206, 30 Deg, 30 mm Bore MPN:5206CFF
Angular Brg, 3206/5206, 30 Deg, 30 mm Bore
This high-performance 30mm double shielded bearing from MRC is designed for demanding applications where precision and reliability are crucial. With a maximum speed of 9,500 RPM and operating temperature range of -20 to 125°C, it's ideal for use in high-speed machinery, industrial equipment, and automotive components. The angular contact design provides stable and smooth operation, while the polyrex lubricant ensures long-lasting performance. Suitable for applications in aerospace, medical devices, and robotics, this bearing offers a high level of precision and accuracy, making it an excellent choice for manufacturers seeking reliable and efficient solutions.
Top product features:
- Double shielded closure provides protection from debris and contamination
- Angular contact bearing design allows for high precision and support in applications with radial and axial loads
- Polyrex lubricant maintains consistent lubrication properties over a wide temperature range
Top product applications:
- High-speed industrial machinery
- Automotive applications
- Aerospace equipment
Angular Contact Ball Bearing, Bearing Industry Number 3206/5206, Bore Diameter 30 mm, Cage Material Steel, Closure Double Shielded, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Lubricant Material Polyrex, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 9,500 RPM, Maximum Temperature 125 Degrees C, Minimum Temperature -20 Degrees C, Number of Rows Two, Outside Diameter 62 mm, Overall Width 23.8 mm, Ring Material Alloy Steel, System of Measurement Metric
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 2.80
- Package Height: 1.00
- Package Weight: 0.65
Product info last updated on February 3, 2026 12:59am UTC
Category: Bearings, V-belts and Power Transmission Equipment
