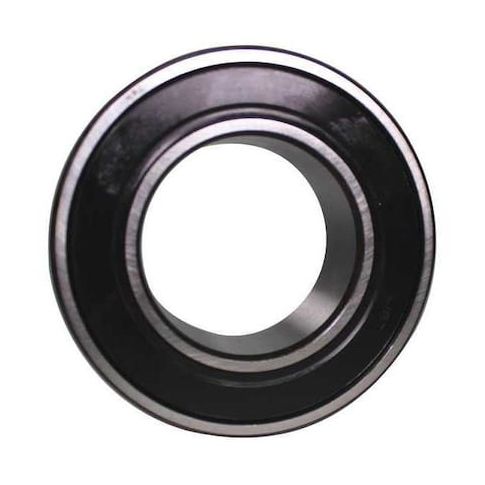

Bearing, 30mm, 28, 600 N, Double Seal MPN:5206CZZ
Bearing, 30mm, 28, 600 N, Double Seal
This high-performance 30mm angular contact ball bearing is designed for demanding applications where precision and reliability are crucial. With a double sealed design and polyrex lubricant, it provides long-lasting protection against dust and moisture. Suitable for use in a wide range of industries, including aerospace, automotive, and industrial manufacturing, this bearing excels in high-speed operations up to 7,000 RPM and temperatures between -20°C and 105°C. Its compact size and high load capacity make it an ideal choice for precision machinery, gearboxes, and other high-torque applications where smooth operation and minimal maintenance are essential.
Top product features:
- Double seal provides a secure and protected environment for the bearing's internal components.
- The angular contact bearing design allows for high precision and smooth operation in applications with high loads and speeds.
- Polyrex lubricant material provides long-lasting and reliable lubrication for the bearing's moving parts.
Top product applications:
- High-precision machinery
- Industrial equipment
- Automotive components
Angular Contact Ball Bearing, Bearing Industry Number 3206/5206, Bore Diameter 30 mm, Cage Material Steel, Closure Double Sealed, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Lubricant Material Polyrex, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 7,000 RPM, Maximum Temperature 105 Degrees C, Minimum Temperature -20 Degrees C, Number of Rows Two, Outside Diameter 62 mm, Overall Width 23.8 mm, Ring Material Alloy Steel, Seal Type Contact
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.70
- Package Width: 2.50
- Package Height: 1.10
- Package Weight: 0.65
Product info last updated on February 4, 2026 8:04am UTC
Category: Bearings, V-belts and Power Transmission Equipment
