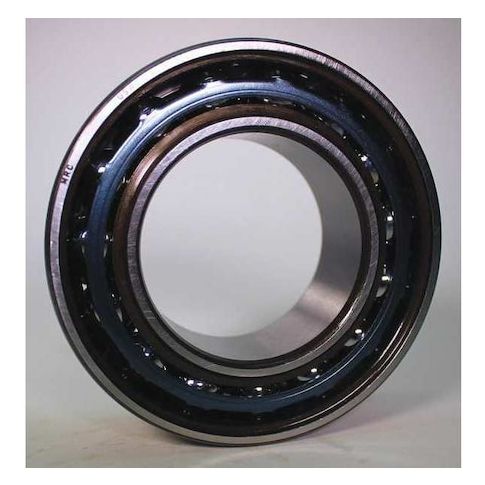

Bearing, 30mm, 30, 300 N, Steel MPN:5206M
Bearing, 30mm, 30, 300 N, Steel
This high-performance 30mm angular contact ball bearing from MRC is designed for demanding applications where precise positioning and high-speed operation are required. With a maximum speed of 9,500 RPM and a temperature range of -20 to 125°C, this bearing is ideal for use in industrial machinery, robotics, and high-speed drives. Its steel cage and alloy steel rings provide exceptional strength and durability, while its ABEC 1 rating ensures precise alignment and smooth operation. Suitable for use in a variety of industries, including aerospace, automotive, and medical, this bearing delivers reliable performance and long lifespan.
Top product features:
- Bore Diameter 30 mm allows for precise fitment in a variety of applications.
- Contact Angle 30 Degrees enables the bearing to withstand high radial and axial loads.
- Maximum Speed 9,500 RPM supports high-performance applications that require rapid rotation.
Top product applications:
- Industrial machinery such as pumps and gearboxes
- Aerospace applications where high precision and speed are required
- Robotics and automation systems where high-speed and high-precision bearings are necessary
Angular Contact Ball Bearing, Bearing Industry Number 3206/5206, Bore Diameter 30 mm, Cage Material Steel, Closure Open, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 9,500 RPM, Maximum Temperature 125 Degrees C, Minimum Temperature -20 Degrees C, Number of Rows Two, Outside Diameter 62 mm, Overall Width 23.8 mm, Ring Material Alloy Steel, System of Measurement Metric, ABEC Rating 1
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 2.50
- Package Height: 1.25
- Package Weight: 0.63
Product info last updated on January 15, 2026 4:51pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
