Bearing, 30mm, 30, 300 N, Double Shield MPN:5206MFF
Bearing, 30mm, 30, 300 N, Double Shield

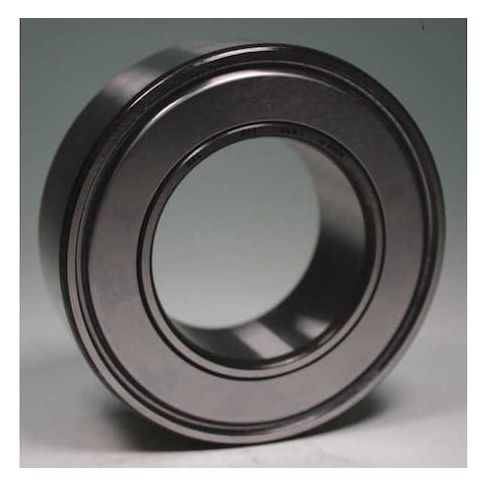

The MRC 30mm Double Shield Angular Contact Ball Bearing is designed for high-speed applications, delivering exceptional performance and reliability. Its 30-degree contact angle and two-row configuration enable smooth rotation and minimal vibration, making it ideal for use in precision machinery, gearboxes, and high-speed motors. With a maximum speed of 9,500 RPM and operating temperature range of -20 to 125°C, this bearing is suitable for demanding industrial and commercial applications, including aerospace, automotive, and robotics. Its durable alloy steel construction and polyrex lubricant ensure long lifespan and minimal maintenance.
Top product features:
- Double Shielded closure for protection from dust and debris
- Polyrex lubricant for reduced friction and wear
- Angular Contact design for improved load-carrying capacity and high-speed performance
Top product applications:
- High-precision machinery such as CNC machines and grinding equipment
- Automotive applications such as wheel bearings and gearboxes
- Aerospace applications such as jet engine components and landing gear
Angular Contact Ball Bearing, Bearing Industry Number 3206/5206, Bore Diameter 30 mm, Cage Material Steel, Closure Double Shielded, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Lubricant Material Polyrex, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 9,500 RPM, Maximum Temperature 125 Degrees C, Minimum Temperature -20 Degrees C, Number of Rows Two, Outside Diameter 62 mm, Overall Width 23.8 mm, Ring Material Alloy Steel, System of Measurement Metric
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 2.50
- Package Height: 1.25
- Package Weight: 0.68
Product info last updated on April 6, 2026 12:19pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
