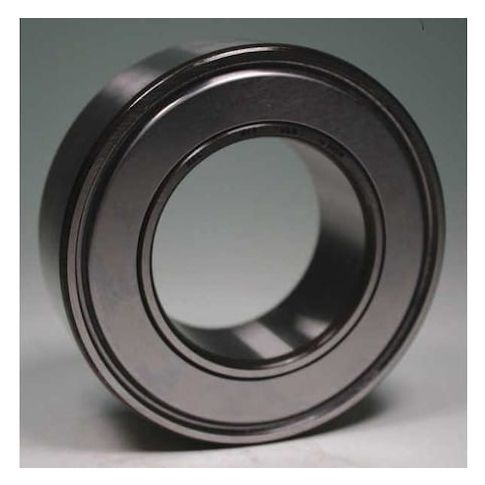

Angular Brg, 3208/5208, 30 Deg, 40 mm Bore MPN:5208MFF
Angular Brg, 3208/5208, 30 Deg, 40 mm Bore
This 40mm double shield angular contact ball bearing from MRC is designed for high-speed applications in harsh environments. With a maximum speed of 7,500 RPM and operating temperature range of -20 to 125°C, it can handle demanding conditions. The double shielded design provides excellent protection against contamination and debris, while the polyrex lubricant ensures smooth operation. Suitable for use in industrial equipment, machinery, and automotive applications, this bearing offers improved reliability, reduced maintenance, and increased productivity. Its compact size and lightweight design make it an ideal choice for a wide range of industries and use cases.
Top product features:
- Double shielded closure protects the bearing from contaminants and debris.
- Has a contact angle of 30 degrees, allowing for high precision and smooth operation in applications with high axial loads.
- Can operate at speeds up to 7,500 RPM and temperatures up to 125 degrees C.
Top product applications:
- Industrial machinery
- High-speed centrifuges
- Precision gearboxes
Angular Contact Ball Bearing, Bearing Industry Number 3208/5208, Bore Diameter 40 mm, Cage Material Steel, Closure Double Shielded, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Lubricant Material Mobil Polyrex EM, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 7,500 RPM, Maximum Temperature 257 Degrees F, Minimum Temperature -4 Degrees F, Number of Rows Two, Outside Diameter 80 mm, Overall Width 30.2 mm, Ring Material Alloy Steel, System of Measurement Metric
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.25
- Package Width: 3.25
- Package Height: 1.50
- Package Weight: 1.42
Product info last updated on February 6, 2026 12:55pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
