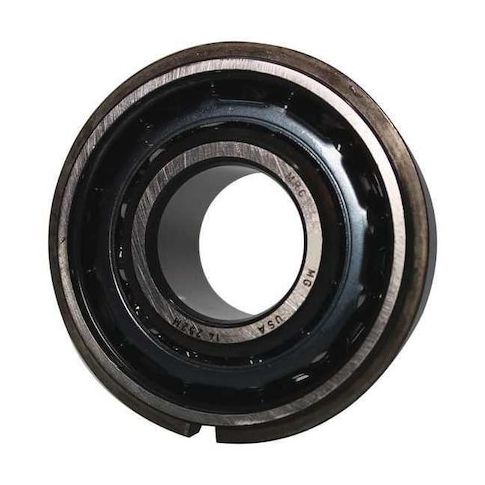

Bearing, 40mm, 49, 500 N, Steel, Snap-Ring MPN:5208MG
Bearing, 40mm, 49, 500 N, Steel, Snap-Ring
The MRC 3208/5208 bearing is a high-performance angular contact ball bearing designed for demanding applications. With a bore diameter of 40mm and a maximum speed of 7,500 RPM, it is ideal for use in high-speed machinery, such as pumps, compressors, and gearboxes. The bearing's 30-degree contact angle and two-row design provide excellent load-carrying capacity and stability, while its steel cage and alloy steel ring material ensure durability and resistance to corrosion. Suitable for use in temperatures ranging from -20°C to 125°C, this bearing is perfect for a variety of industries, including aerospace, automotive, and industrial equipment.
Top product features:
- Angular Contact Ball Bearing design allows for high precision and smooth operation in applications with high radial and axial loads.
- Two-row bearing configuration provides increased load-carrying capacity and improved stability.
- 30-degree contact angle enables efficient heat dissipation and reduces the risk of overheating in high-speed applications.
Top product applications:
- Electric Motor
- Pump
- Conveyor System
Angular Contact Ball Bearing, Bearing Industry Number 3208/5208, Bore Diameter 40 mm, Cage Material Steel, Closure Open, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 7,500 RPM, Maximum Temperature 125 Degrees C, Minimum Temperature -20 Degrees C, Number of Rows Two, Outside Diameter 80 mm, Overall Width 30.2 mm, Ring Material Alloy Steel, System of Measurement Metric, ABEC Rating 1
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 3.80
- Package Height: 1.50
- Package Weight: 1.35
Product info last updated on January 14, 2026 9:46am UTC
Category: Bearings, V-belts and Power Transmission Equipment
