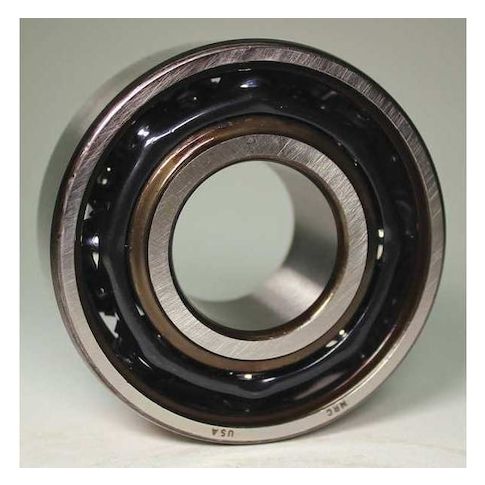

Bearing, 45mm, 48, 800 N, Steel MPN:5209C
Bearing, 45mm, 48, 800 N, Steel
This 45mm angular contact ball bearing from MRC is designed for high-precision applications requiring reliable performance. With a maximum speed of 6,700 RPM and a temperature range of -20 to 125 degrees C, it can handle demanding conditions. The bearing's 30-degree contact angle and two-row design provide increased load-carrying capacity and improved rigidity. Suitable for use in high-speed machinery, robotics, and aerospace applications, this bearing offers improved efficiency and reduced maintenance. Its compact size and high-speed capabilities make it an ideal choice for applications requiring precision and reliability.
Top product features:
- Bearing supports angular contact, allowing for high precision and smooth operation in applications with radial and axial loads.
- Bearing has a maximum speed of 6,700 RPM, enabling high-speed operation in demanding applications.
- Bearing has a temperature range of -20 to 125 degrees C, allowing for reliable operation in a wide range of environments.
Top product applications:
- High-speed machinery such as centrifuges and pumps
- Industrial equipment such as gearboxes and motors
- Aerospace applications such as helicopter gearboxes and landing gear
Angular Contact Ball Bearing, Bearing Industry Number 3209/5209, Bore Diameter 45 mm, Cage Material Steel, Closure Open, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 6,700 RPM, Maximum Temperature 125 Degrees C, Minimum Temperature -20 Degrees C, Number of Rows Two, Outside Diameter 85 mm, Overall Width 30.2 mm, Ring Material Alloy Steel, System of Measurement Metric, ABEC Rating 1
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 3.50
- Package Height: 1.50
- Package Weight: 1.44
Product info last updated on January 15, 2026 8:17pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
