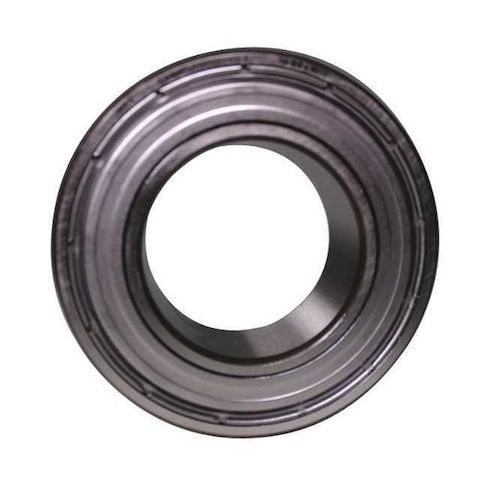

Bearing, 45mm, 48, 800 N, Double Shield MPN:5209CFF
Bearing, 45mm, 48, 800 N, Double Shield
The MRC Double Shield 45mm Bearing is a high-performance, angular contact ball bearing designed for demanding applications. With a contact angle of 30 degrees and a maximum speed of 6,700 RPM, it's ideal for use in high-speed machinery, precision instruments, and other equipment where accurate positioning and smooth operation are critical. Its double shielded design provides long-lasting lubrication and protection from contaminants, while its alloy steel construction ensures durability and resistance to extreme temperatures (-20°C to 125°C). Suitable for use in a wide range of industries, including aerospace, automotive, and medical, this bearing is a reliable choice for applications requiring precision and reliability.
Top product features:
- Double shielded closure provides protection from dust and contamination
- 30-degree contact angle enables high precision and load-carrying capacity
- Polyrex lubricant ensures long-lasting and reliable bearing performance
Top product applications:
- Industrial machinery
- Robotics and automation systems
- Aerospace applications
Angular Contact Ball Bearing, Bearing Industry Number 3209/5209, Bore Diameter 45 mm, Cage Material Steel, Closure Double Shielded, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Lubricant Material Polyrex, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 6,700 RPM, Maximum Temperature 125 Degrees C, Minimum Temperature -20 Degrees C, Number of Rows Two, Outside Diameter 85 mm, Overall Width 30.2 mm, Ring Material Alloy Steel, System of Measurement Metric
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 3.50
- Package Height: 1.50
- Package Weight: 1.50
Product info last updated on January 30, 2026 10:04pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
