Bearing, 45mm, 48, 800 N, Steel, Snap-Ring MPN:5209CG
Bearing, 45mm, 48, 800 N, Steel, Snap-Ring

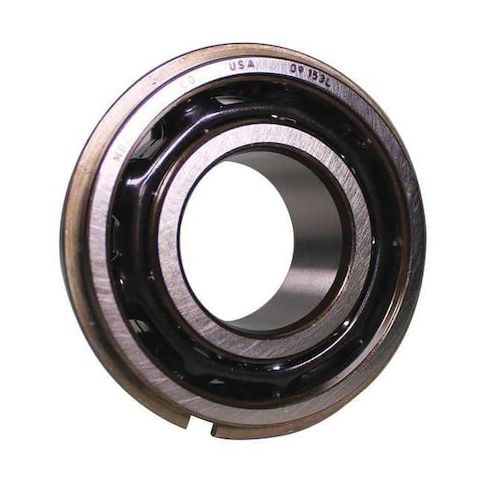

This high-performance 45mm angular contact ball bearing from MRC is designed to handle demanding applications with ease. With a maximum speed of 6,700 RPM and a temperature range of -20 to 125°C, it's ideal for use in heavy machinery, industrial equipment, and high-speed machinery. The bearing's 30-degree contact angle and two-row design provide excellent load-carrying capacity and precision, making it suitable for use in applications such as gearboxes, motors, and pumps. Its compact size and durable alloy steel construction ensure long-lasting performance and reliability, making it a great choice for a wide range of industrial applications.
Top product features:
- Angular contact design allows for high precision and smooth operation in applications with radial and axial loads.
- Two-row bearing construction provides increased load capacity and stability.
- Maximum speed of 6,700 RPM enables high-speed applications.
Top product applications:
- Pump and motor mounting applications due to its high speed and temperature capabilities
- Industrial machinery and equipment that requires high precision and reliability
- Aerospace and defense applications where high performance and durability are critical
Angular Contact Ball Bearing, Bearing Industry Number 3209/5209, Bore Diameter 45 mm, Cage Material Steel, Closure Open, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 6,700 RPM, Maximum Temperature 125 Degrees C, Minimum Temperature -20 Degrees C, Number of Rows Two, Outside Diameter 85 mm, Overall Width 30.2 mm, Ring Material Alloy Steel, System of Measurement Metric, ABEC Rating 1
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 3.50
- Package Height: 1.50
- Package Weight: 1.62
Product info last updated on January 23, 2026 9:51pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
